4-inch and 6-inch Stop/Tail/Turn Lamps with Integrated Backup Lamp by VSM

LED stop/tail/turn signal lamps from Vehicle Safety Manufacturing are designed to operate in the harshest conditions and we are pleased to introduce two new part numbers, 4440BU and 6440BU. These 4-inch and 6-inch lamps integrate backup lamp functionality into the same form factor as traditional lamps providing an extra safety feature while conforming to FMVSS 108 requirements. IP67 protection means the lamps are sealed against the elements and ready to provide a long life of use to your fleet.

Vehicle safety manufacturing is the industry leader in heavy truck replacement parts manufacturing and we offer a variety of other 4-inch and 6-inch LED lamps along with a wide variety of other mounting accessories and harnesses to keep your trucks in operation.

VSM6440BU 6-inch Oval Red S/T/T Lamp with Backup Lamp

6440BU 6-inch Oval Red S/T/T Lamp with Backup Lamp

Click image to enlarge...

Features

  • Product Installation
  • Mounts Into Standard 6" Grommet
  • Product Construction
  • Red/Clear PMMA Lens
  • Black ABS Housing
  • 14 SMD Design
  • Current Draw
  • Stop/Rear Turn 13.5V/.268A
  • Tail Lamp: 13.5V/.014A
  • Backup Lamp: 13.5V/.213A
  • Warranty
  • 3-Year

Available Accessories (Sold Separately)

9526 open back grommet for 6-inch lamps 9167 closed back grommet for 6-inch lamps 9429 4-wire Sure Seal plug with pigtail harness

Click images to enlarge...

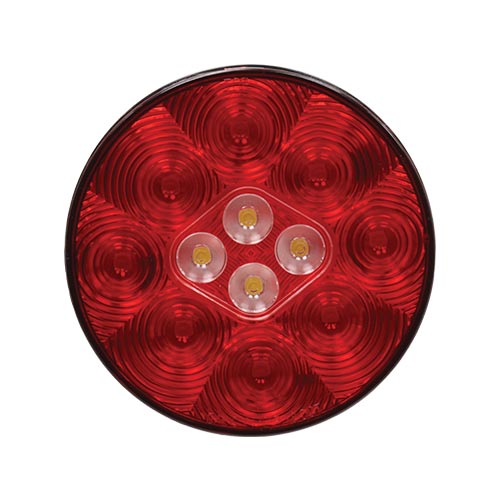

VSM4440BU 4-inch Round Red S/T/T Lamp with Backup Lamp

4440BU 4-inch Round Red S/T/T Lamp with Backup Lamp

Click image to enlarge...

Features

  • Product Installation
  • Mounts Into Standard 4" Grommet
  • Product Construction
  • Red/Clear PMMA Lens
  • Black ABS Housing
  • 13 SMD Design
  • Current Draw
  • Stop/Rear Turn 13.5V/.329A
  • Tail Lamp: 13.5V/.024A
  • Backup Lamp: 13.5V/.213A
  • Warranty
  • 3-Year

Available Accessories (Sold Separately)

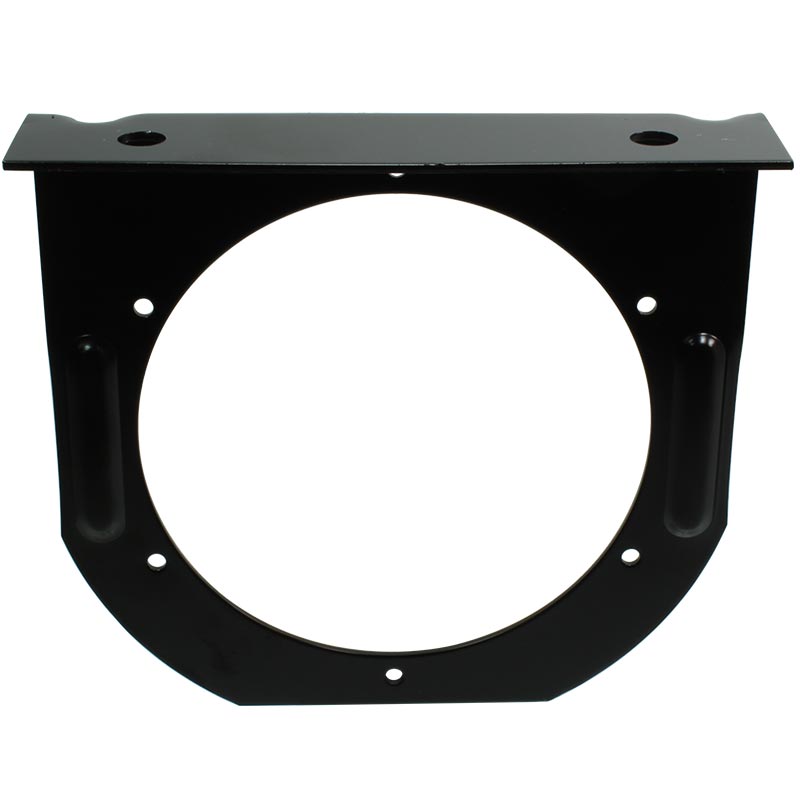

9127 open back grommet for 4-inch lamps 9137 closed back grommet for 4-inch lamps 9429 4-wire Sure Seal plug with pigtail harness 9238 steel bracket with mounting flange

Click images to enlarge...
