Incandescent Universal and Vehicle-Specific Multi-Function Combination Box Lamps

VSM's rear multi-function Incandescent box lamps cover a wide variety of universal and vehicle-specific applications. These combination lamps, in most cases, include stop/tail/turn and reverse lamp functionality and are available with DIY wiring with and without ring terminals, or with vehicle-specific connectors like popular right and left-hand side Metri-Pack plugs. Options include lamps for manufacturers Peterbilt, GM, Mack, Volvo, Freightliner, Navistar, and more with two and three-bolt mounting patterns. Learn more about our individual lamps and lamp kits below and feel free to contact us if you have any questions or require a customized solution.

Product Features

  • Gasket between lens and housing protects against moisture intrusion
  • Epoxy encapsulated electronics for protection against moisture, vibration and corrosion
  • Mounting Hardware included
  • Polycarbonate housing / Acrylic lens
  • Voltage 12-13.5 Volts
  • Replaceable 1156 reverse lamp bulb
  • Replaceable 1157 S/T/T bulb

Don't forget VSM also supplies direct replacement Metri-Pack wire harnesses to keep your connections safe, secure, and in good working condition, and replacement lenses. Click here to view available harnesses and lenses.

VSM4027 3 Stud Universal Rear Combination Lamp

4027 3 Stud Universal Rear Combination Lamp

Click image to enlarge...

More Images

VSM4027 3 Stud Universal Rear Combination Lamp Pigtail Wiring Harness VSM4027 3 Stud Universal Incandescent Rear Combination Lamp VSM4027 3 Stud Universal Incandescent Rear Combination Lamp License Plate Lamp Illumination

Click images to enlarge...

Features

  • Product Mounting
  • Three-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • 12-Inch Pigtail Harness, Bare Wire
  • Other Product Details
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

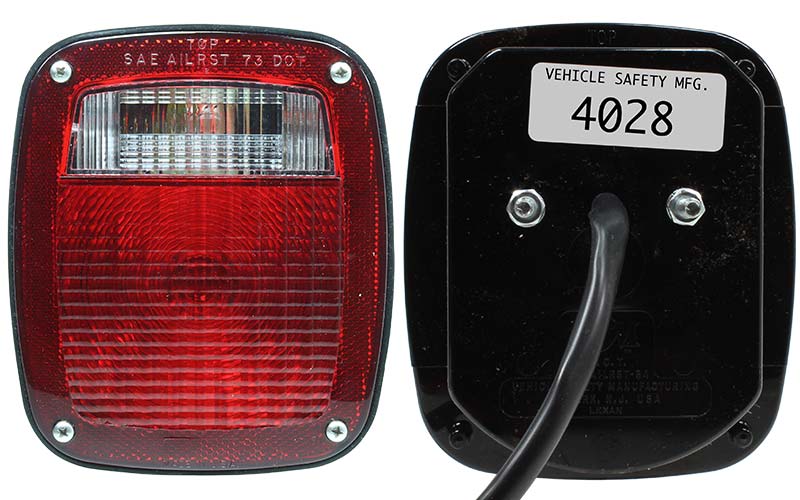

VSM4028 2 Stud Mack Rear Combination Lamp

VSM4028 2 Stud Mack  Rear Combination Lamp

Click image to enlarge...

More Images

VSM4028 2 Stud Mack Rear Combination Lamp Ring Terminal Wiring VSM4028 2 Stud Mack Rear Combination Lamp VSM4028 2 Stud Mack Rear Combination Lamp License Plate Lamp Illumination

Click images to enlarge...

Features

  • Product Mounting
  • Two-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • 30-Inch Pigtail Harness with Ring Terminals
  • Other Product Details
  • Mack 14M0444RP1, 14M0444RP4
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

VSM4029 2 Stud Mack Rear Combination Lamp

VSM4029 2 Stud Mack Rear Combination Lamp

Click image to enlarge...

More Images

VSM4029 3 Stud Universal Rear Combination Lamp Pigtail Wiring Harness VSM4028 2 Stud Mack Rear Combination Lamp VSM4028 2 Stud Mack Rear Combination Lamp License Plate Lamp Illumination

Click images to enlarge...

Features

  • Product Mounting
  • Two-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • 30-Inch Pigtail Harness, Bare Wire
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • Other Product Details
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

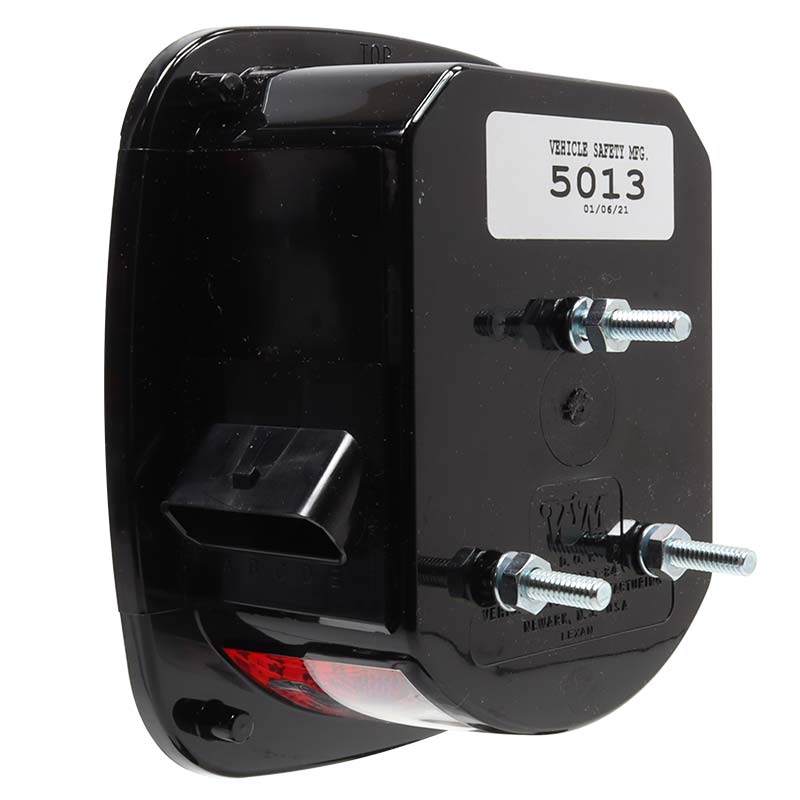

VSM5013 3 Stud Metri-Pack Connector on Right Side

VSM5013 3 Stud LED Rear Combination Lamp for Peterbilt, Freightliner, GM

Click image to enlarge...

More Images

VSM5013 3 Stud LED Rear Combination Lamp for Peterbilt, Freightliner, GM VSM5013 3 Stud Rear Combination Lamp with Metri-Pack Connector on Right Side VSM5013 3 Stud LED Rear Combination Lamp with License Plate Illumination

Click images to enlarge...

Features

  • Product Mounting
  • Three-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • Metri-Pack Connector on Side
  • Other Product Details
  • Peterbilt 16-06160L
  • Freightliner 681-544-04-03
  • GM 15565731, 15574697, 15613943, 15684994
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

VSM5014 3 Stud Metri-Pack Connector on Left Side

5014 3 Stud LED Rear Combination Lamp for Peterbilt and GM Trucks

Click image to enlarge...

More Images

VSM5014 3 Stud LED Rear Combination Lamp for Peterbilt and GM Trucks VSM5014 3 Stud Rear Combination Lamp with Metri-Pack Connector on Left Side VSM5014 3 Stud LED Rear Combination Lamp with License Plate Illumination

Click images to enlarge...

Features

  • Product Mounting
  • Three-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • Metri-Pack Connector on Side
  • Other Product Details
  • Peterbilt 16-06160R, 16-06292
  • GM 15565732, 15574696, 15613944, 15684995
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

VSM5015 2 Stud Metri-Pack Connector on Right Side

5015 3 Stud Metri-Pack Connector on Right Side

Click image to enlarge...

More Images

VSM5015 3 Stud LED Rear Combination Lamp for Peterbilt and GM Trucks VSM5015 2 Stud Metri-Pack Connector on Right Side VSM5015 License Plate Illumination Light Built-In VSM5015 Metri-Pack Connector

Click images to enlarge...

Features

  • Product Mounting
  • Two-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • Metri-Pack Connector on Side
  • Other Product Details
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

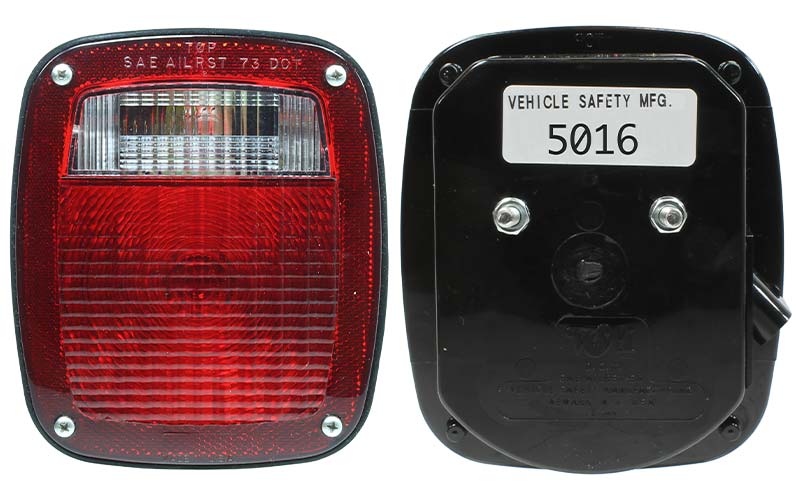

VSM5016 2 Stud Metri-Pack Connector on Left Side

VSM5016 2 Stud LED Rear Combination Lamp, Mack 14M052AM and 14M052M

Click image to enlarge...

More Images

VSM5016 3 Stud LED Rear Combination Lamp for Mack Trucks VSM5016 2 Stud Metri-Pack Connector on Left Side VSM5016 License Plate Illumination Light Built-In

Click images to enlarge...

Features

  • Product Mounting
  • Three-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • Metri-Pack Connector on Side
  • Other Product Details
  • Mack 14M052AM, 14M052M
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

VSM5023 3 Stud with Double Metri-Pack Connector

VSM5023 3 Stud with Double Metri-Pack Connector, Peterbilt 16-06291, Volvo/GM 8067855

Click image to enlarge...

More Images

VSM5023 3 Stud LED Rear Combination Lamp for Peterbilt, Volvo, and GM Trucks VSM5023 3 Stud with Double Metri-Pack Connector VSM5023 License Plate Illumination Light Built-In VSM5023 Left and Right Metri-Pack Connectors

Click images to enlarge...

Features

  • Product Mounting
  • Three-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • Metri-Pack Connector on Both Sides
  • Other Product Details
  • Volvo/GM 8067855
  • Peterbilt 16-06291
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

VSM5023Y102 3 Stud with Double Metri-Pack Connector

VSM5023Y102 3 Stud with Double Metri-Pack Connector, Left Side Replacement for Navistar 1661281C91 and 2009908C91

Click image to enlarge...

More Images

VSM5023Y102 3 Stud LED Rear Combination Lamp for Peterbilt, Volvo, and GM Trucks VSM5023Y102 3 Stud with Double Metri-Pack Connector VSM5023Y102 License Plate Illumination Light Built-In VSM5023Y102 Left and Right Metri-Pack Connectors

Click images to enlarge...

Features

  • Product Mounting
  • Three-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • Metri-Pack Connector on Both Sides
  • Other Product Details
  • Navistar 1661281C91 and 2009908C91
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

VSM5024 3 Stud with Double Metri-Pack Connector

VSM5024 3 Stud with Double Metri-Pack Connector, Right Side Replacement for Freightliner 681-544-05-03

Click image to enlarge...

More Images

VSM5024 3 Stud with Double Metri-Pack Connector, Right Side Replacement for Freightliner 681-544-05-03 VSM5024 3 Stud with Double Metri-Pack Connector VSM5024 License Plate Illumination Light Built-In VSM5024 Left and Right Metri-Pack Connectors

Click images to enlarge...

Features

  • Product Mounting
  • Three-Stud Pattern with 2-Inch Spacing
  • Product Installation
  • Mounts Using Built-In 1/4-20 x 1" Studs
  • Product Construction
  • Polycarbonate Housing with Acrylic Lens
  • Gasket Between Lens and Housing
  • Metri-Pack Connector on Both Sides
  • Other Product Details
  • Freightliner 681-544-05-03
  • Replaceable 1157 Bulb (S/T/T)
  • Replaceable 1156 Bulb (Backup)
  • 12 to 13.5V Operating Voltage
  • Grounding Function Through Studs
  • 3 Year Warranty

Metri-Pack Wire Harnesses

VSM9464 Metri-Pack 4-Wire

VSM9464 4 wire Metri-Pack harness 22-inch length.

Click images to enlarge...

VSM9466 Metri Cross-Over

VSM9466 Metri-Pack harness 78-inch length. 16-gauge wire.

Click images to enlarge...

VSM9469 Metri Daisy Chain

VSM9469 Daisy Chain Harness 36-inch length. 16-gauge wire.

Click images to enlarge...

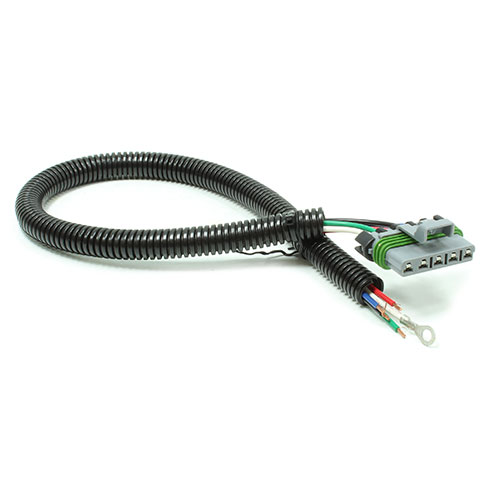

VSM9470 Metri-Pack 5-Wire

VSM9470 5-wire Metri-Pack harness 22-inch length. 16 gauge wire.

Click images to enlarge...
