PAR 36 LED Lamps by VSM

Converts any PAR 36 incandescent lamp into a solid state led work light. With standard connections, users can upgrade an existing incandescent or halogen sealed beam lamp, converting it into a super bright LED work light that lasts longer, shines brighter and delivers better value, without removing the original fixture from the vehicle.

VSM PAR 36 LED Lamp Replacement Features

  • Built to last in the most demanding environments such as material handling, construction, agricultural, forestry, mining and other off road equipment and truck applications
  • Threaded mounting holes on back of housing allow lamp to be mounted as stand alone device.
  • Push on terminals makes conversion quick and easy.
  • Trapezoid or Spot Beam pattern.
  • Lamp operates at full brightness between 9-36 VDC, allows for multi-voltage applications.
  • Waterproof sealed design with a rugged die cast metal housing that protects the LEDs from vibration and moisture.

VSM4411LED PAR 36 LED Trapezoid Beam Pattern

VSM4411LED PAR 36 replacement LED lamp with trapezoid beam pattern

Click image to enlarge...

More Images

VSM4411LED PAR 36 replacement LED lamp with trapezoid beam pattern VSM4411LED PAR 36 replacement LED lamp with trapezoid beam pattern VSM4411LED PAR 36 replacement LED lamp with trapezoid beam pattern VSM4411LED PAR 36 replacement LED lamp with trapezoid beam pattern

Click images to enlarge...

Features

  • Product Dimensions
  • Standard PAR 36 Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens with Hard Coat
  • Black Powder Coated Housing
  • Aluminum Die Cast Assembly
  • Product Wiring
  • Two-Contact Power Input
  • Other Product Details
  • Watertight Construction
  • Eight Encapsulated Diodes
  • 800 Lumens Output
  • Current Draw 1.14 A at 12.8V
  • Operating Voltage 9V-36V
  • Aluminum PCB
  • 3 Year Warranty

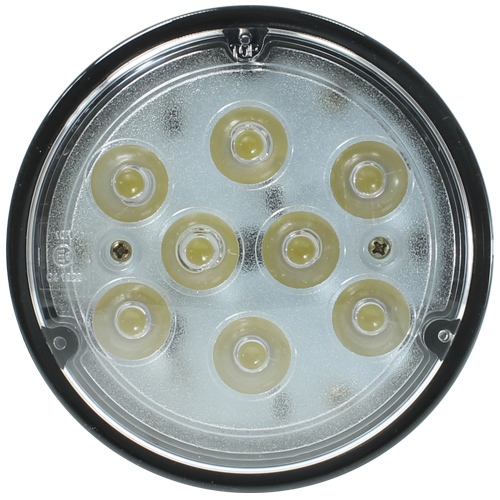

VSM4415LED PAR 36 LED Spot Beam Pattern

VSM4415LED PAR 36 replacement LED lamp with spot beam pattern

Click image to enlarge...

More Images

VSM4415LED PAR 36 replacement LED lamp with spot beam pattern VSM4415LED PAR 36 replacement LED lamp with spot beam pattern VSM4415LED PAR 36 replacement LED lamp with spot beam pattern VSM4415LED PAR 36 replacement LED lamp with spot beam pattern

Click images to enlarge...

Features

  • Product Dimensions
  • Standard PAR 36 Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens with Hard Coat
  • Black Powder Coated Housing
  • Aluminum Die Cast Assembly
  • Product Wiring
  • Two-Contact Power Input
  • Other Product Details
  • Watertight Construction
  • Eight Encapsulated Diodes
  • 800 Lumens Output
  • Current Draw 1.14 A at 12.8V
  • Operating Voltage 9V-36V
  • Aluminum PCB
  • 3 Year Warranty

Beam Patterns

Trapezoid Beam Pattern

Spot Beam Pattern
