Thomas Built, Blue Bird, and IC Bus Backup Cameras

Vehicle Safety Manufacturing is pleased to introduce our new line of backup camera systems for school bus applications. These unique cameras, designed for use on buses from Thomas Bus, IC Bus, and Blue Bird Bus (see part numbers and descriptions below) include an innovative mounting assembly designed to fit behind the high-mount clearance lamp above the rear door of a school bus to angle the camera in such a way that it perfectly captures the area directly behind the bus and provides a birds-eye-view to the driver in real-time and in high-definition.

Learn more about our individual FMVSS 111 compatible programmable backup and forward-facing cameras below and feel free to contact us if you have any questions or require a customized solution.

Sample Video

250-8157 Thomas Bus Backup Camera

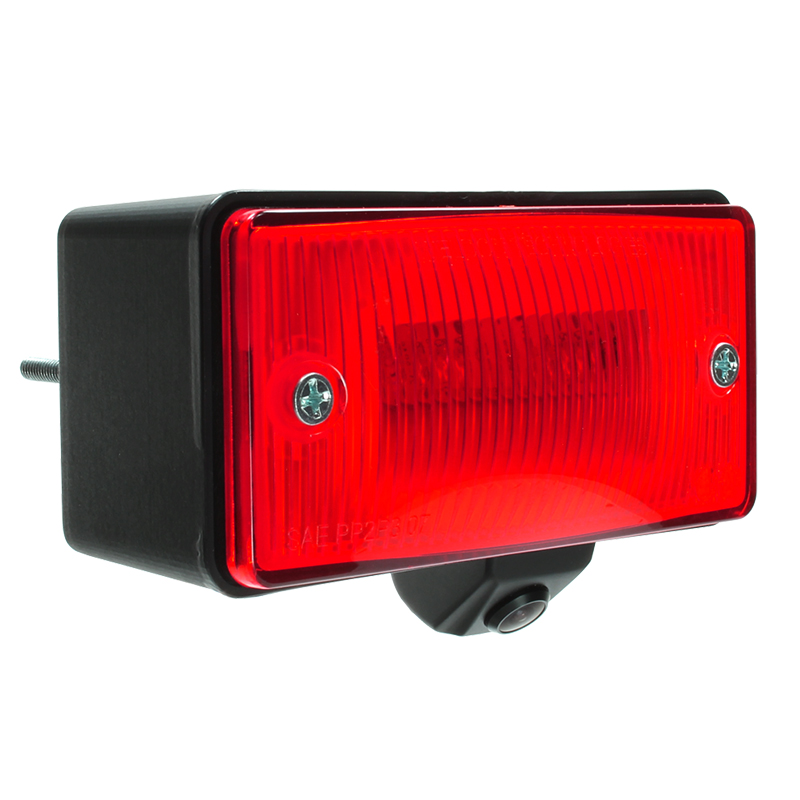

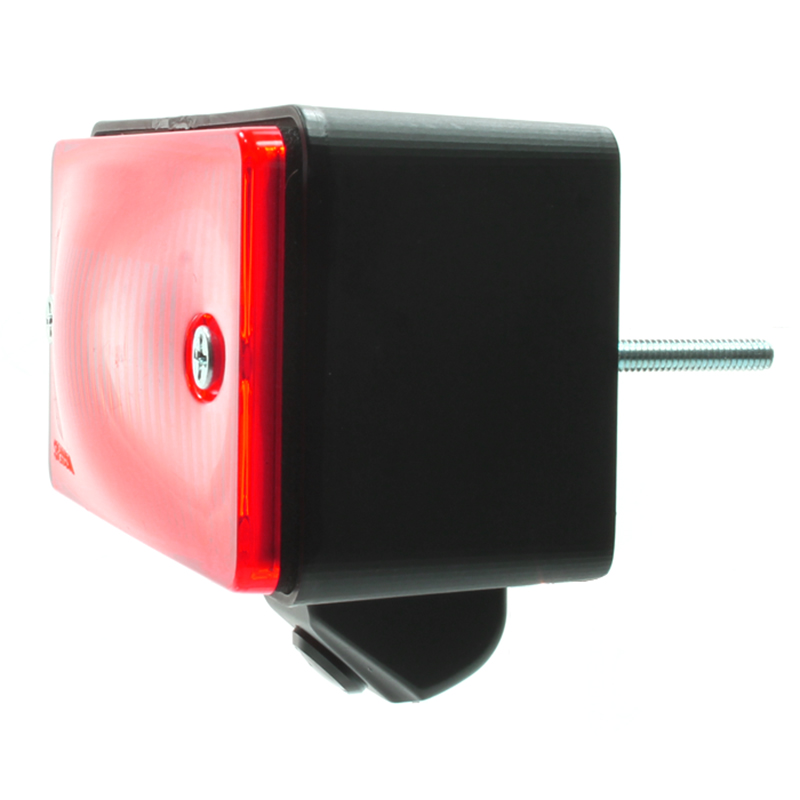

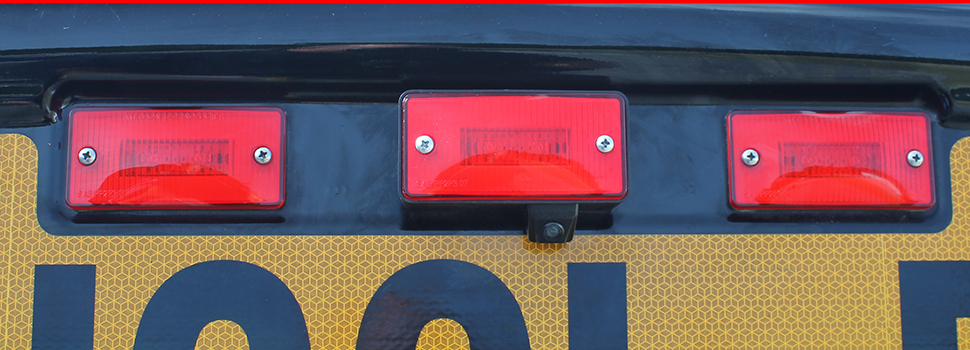

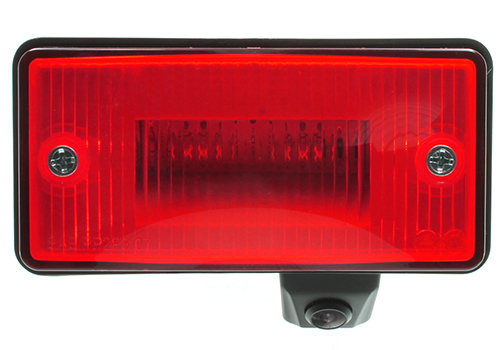

250-8157 Thomas Built Bus clearance/marker lamp assembly with integrated CMOS color camera

Click image to enlarge...

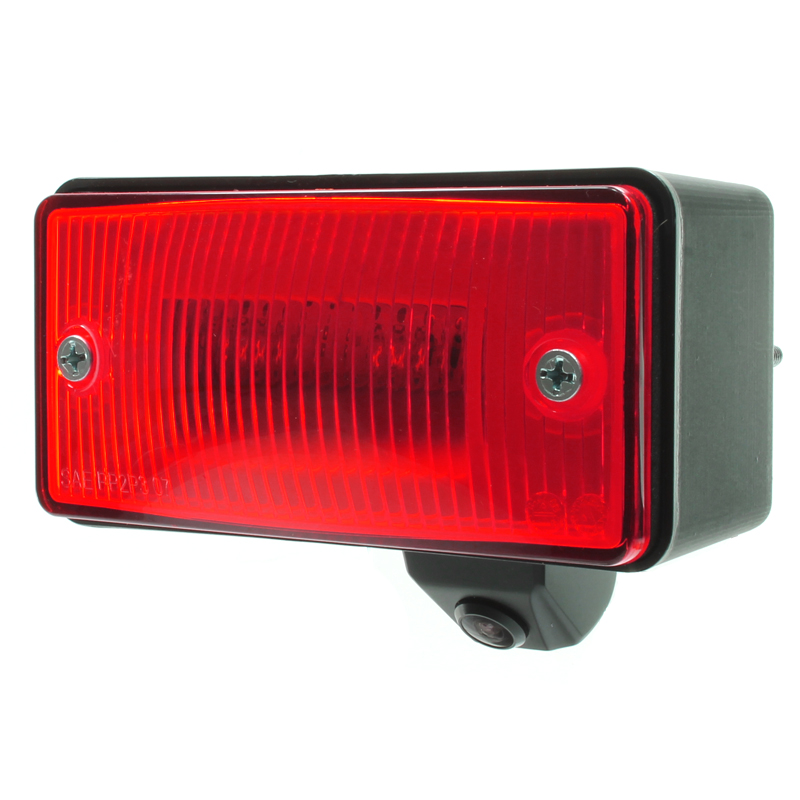

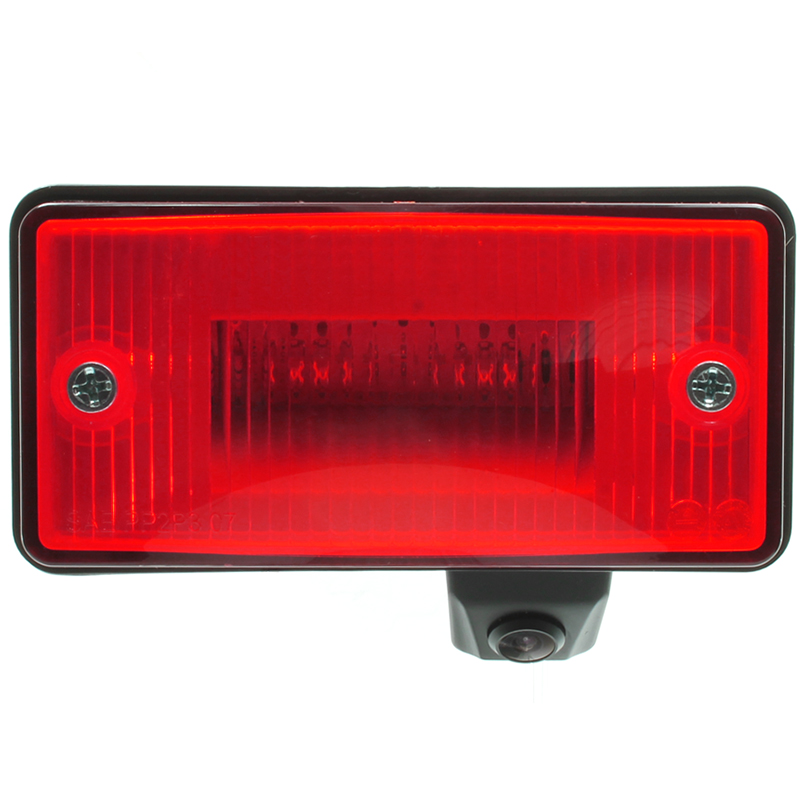

250-8157 Thomas Built Bus clearance/marker lamp assembly with integrated CMOS color camera 250-8157 Thomas Built Bus clearance/marker lamp assembly with integrated CMOS color camera 250-8157 Thomas Built Bus clearance/marker lamp assembly with integrated CMOS color camera 250-8157 Thomas Built Bus clearance/marker lamp assembly with integrated CMOS color camera

Click images to enlarge...

Features

  • Viewing Angle
  • 160° Horizontal
  • Image Sensor
  • 1/4" CMOS
  • Connection
  • 4-Pin Threaded
  • Installation
  • 8mm Hole for Mounting
  • Lens
  • Waterproof, Anti-Fog
  • TV System
  • NTSC
  • Frame Rate
  • 30 FPS (NTSC)
  • Power Supply
  • 5.5V-36V
  • Current Consumption
  • 80mA(12V)
  • Working Temperature
  • -20°~70°C
  • Storage Temperature
  • -30°~80°C

250-8159 Blue Bird Bus Backup Camera

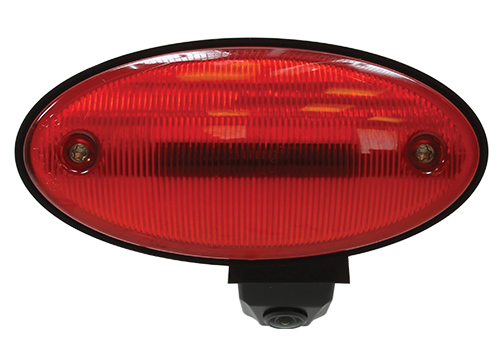

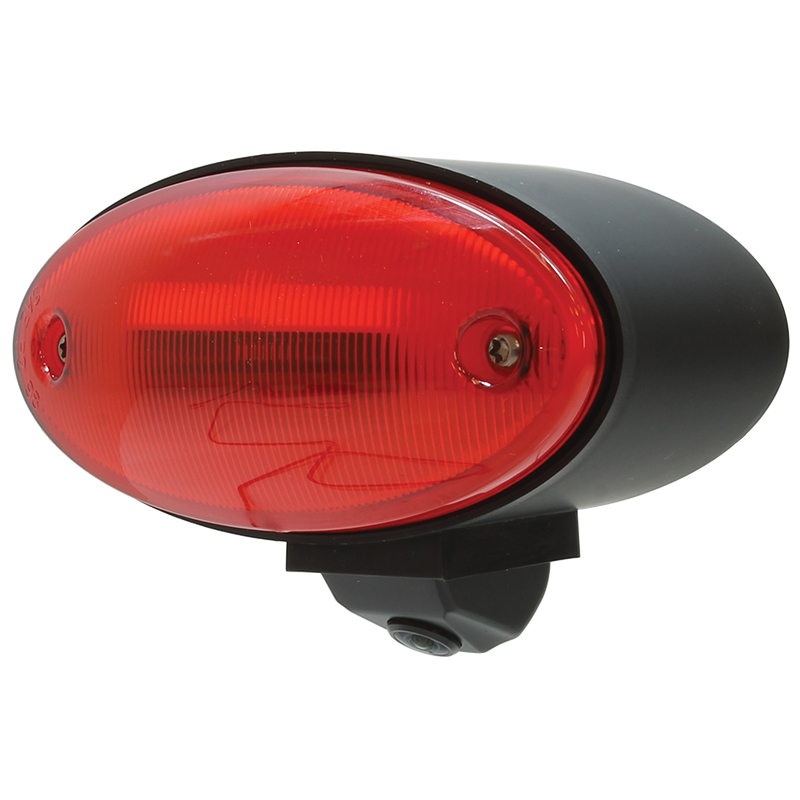

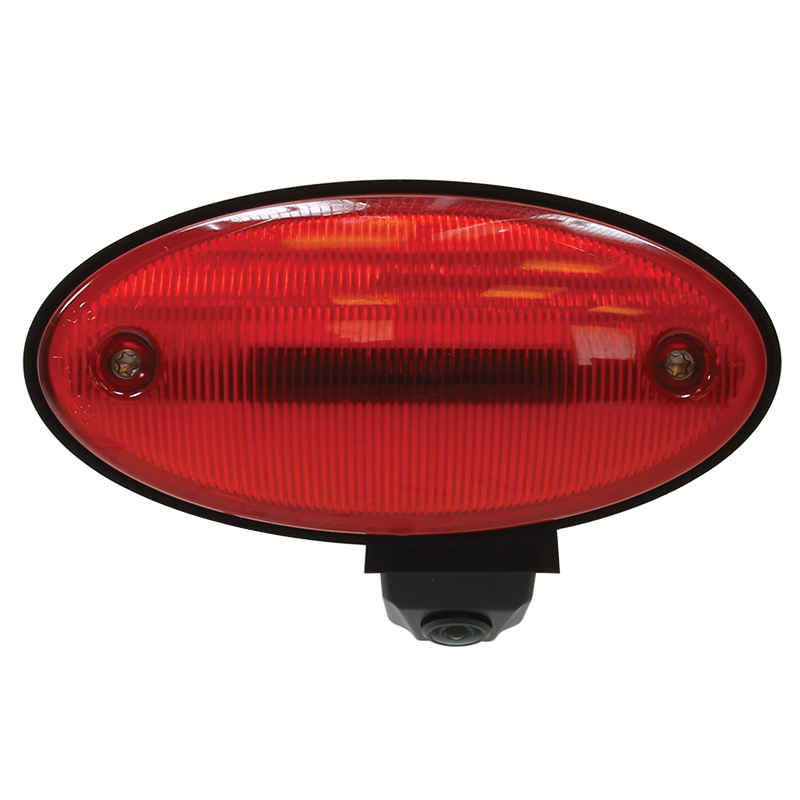

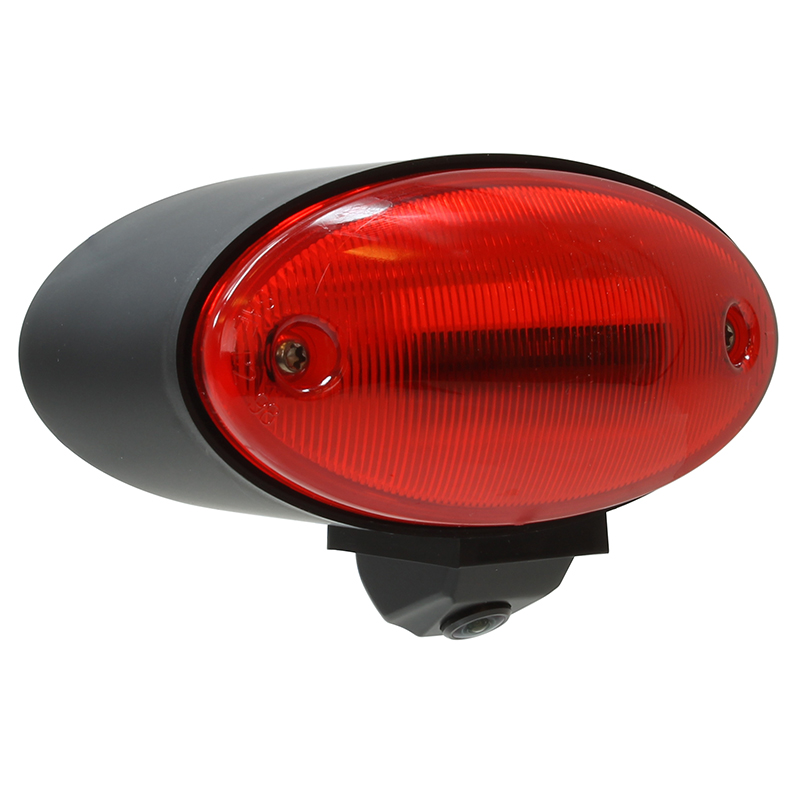

250-8159 Blue Bird Bus clearance/marker lamp assembly with integrated CMOS color camera

Click image to enlarge...

250-8159 Blue Bird Bus clearance/marker lamp assembly with integrated CMOS color camera 250-8159 Blue Bird Bus clearance/marker lamp assembly with integrated CMOS color camera 250-8159 Blue Bird Bus clearance/marker lamp assembly with integrated CMOS color camera

Click images to enlarge...

Features

  • Viewing Angle
  • 160° Horizontal
  • Image Sensor
  • 1/4" CMOS
  • Connection
  • 4-Pin Threaded
  • Installation
  • 8mm Hole for Mounting
  • Lens
  • Waterproof, Anti-Fog
  • TV System
  • NTSC
  • Frame Rate
  • 30 FPS (NTSC)
  • Power Supply
  • 5.5V-36V
  • Current Consumption
  • 80mA(12V)
  • Working Temperature
  • -20°~70°C
  • Storage Temperature
  • -30°~80°C

250-8165 IC Bus Backup Camera

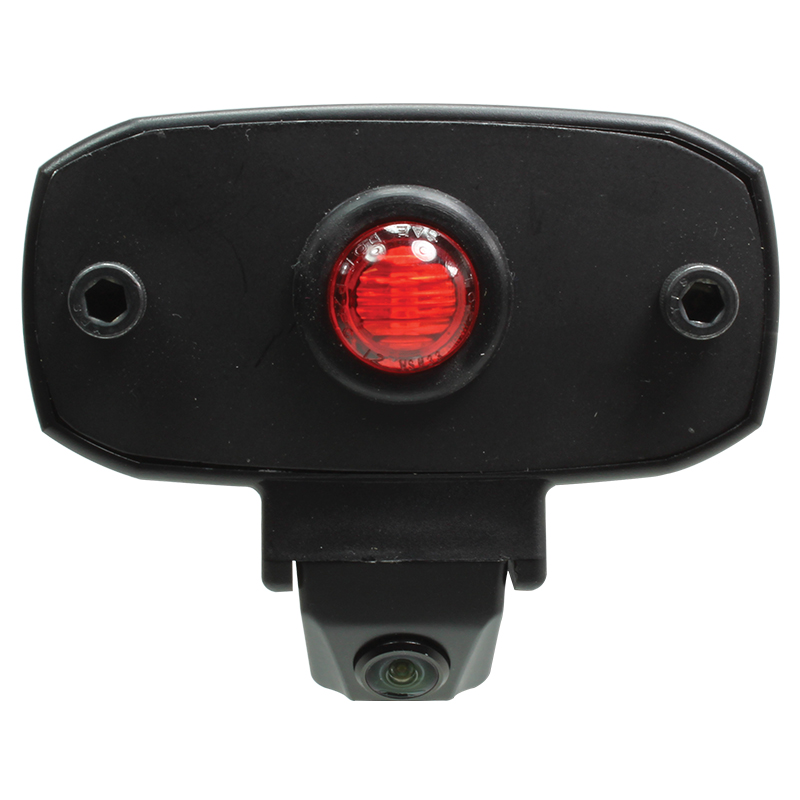

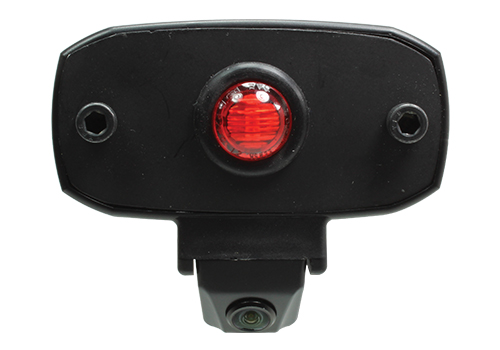

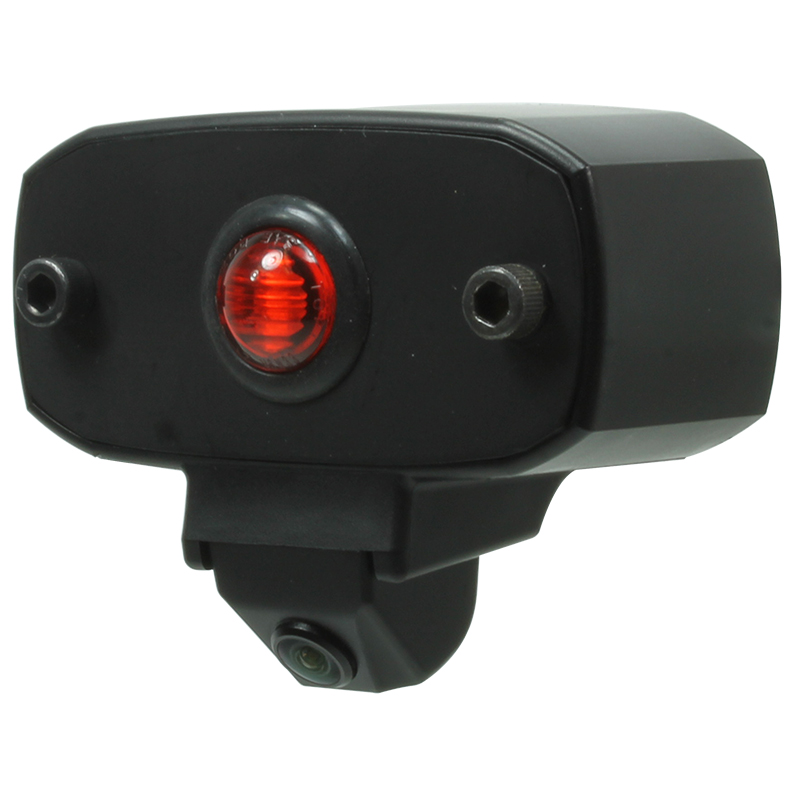

250-8165 IC Bus clearance/marker lamp assembly with integrated CMOS color camera

Click image to enlarge...

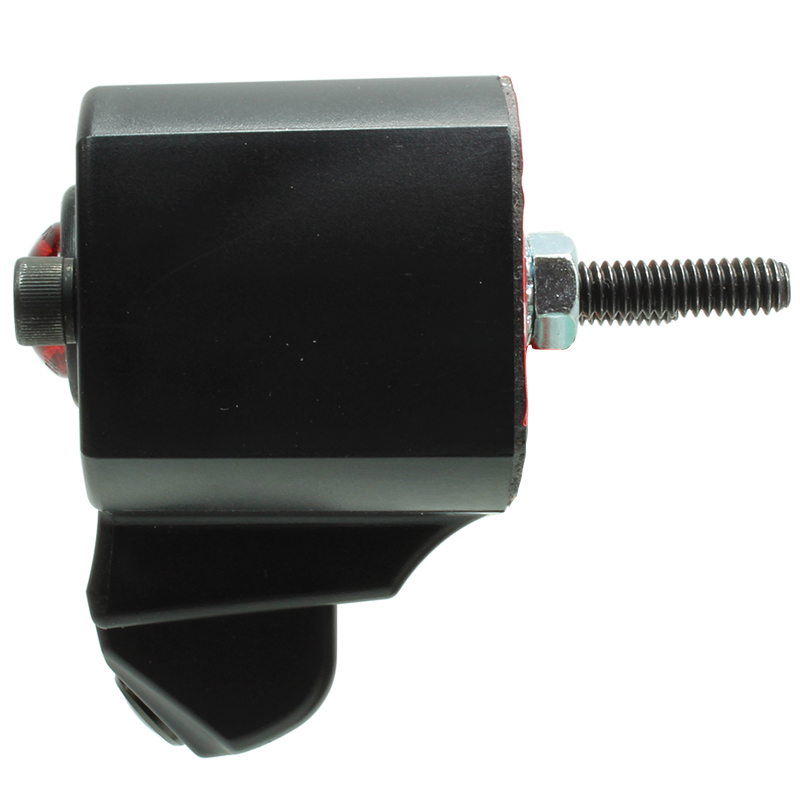

250-8165 IC Bus clearance/marker lamp assembly with integrated CMOS color camera 250-8165 IC Bus clearance/marker lamp assembly with integrated CMOS color camera 250-8165 IC Bus clearance/marker lamp assembly with integrated CMOS color camera

Click images to enlarge...

Features

  • Viewing Angle
  • 160° Horizontal
  • Image Sensor
  • 1/4" CMOS
  • Connection
  • 4-Pin Threaded
  • Installation
  • 8mm Hole for Mounting
  • Lens
  • Waterproof, Anti-Fog
  • TV System
  • NTSC
  • Frame Rate
  • 30 FPS (NTSC)
  • Power Supply
  • 5.5V-36V
  • Current Consumption
  • 80mA(12V)
  • Working Temperature
  • -20°~70°C
  • Storage Temperature
  • -30°~80°C

School Bus Backup Camera and Monitor Systems

The backup camera systems featured below for Thomas Bus, IC Bus, and Blue Bird Bus feature either a 250-8157, 250-8159, or 250-8165 high-mount backup camera with integrated mounting assembly, a 7-inch LCD monitor with two camera inputs, and VSM's 250-8172 190-degree programmable/adjustable camera which, when paired with the included programming remote control, allows installers to digitally change the viewing angle of the camera itself without physically moving it once mounted in place. For more details on these innovative camera, please click here. These kits include all necessary components for installing a backup camera system on a bus. For specialty applications, or for help designing a custom application, please contact us by clicking here.

Thomas Bus 250-8220-TBBUS 7” two-channel monitor with custom clearance lamp/camera mounting assembly and programmable multi-mount camera

IC Bus 250-8220-ICBUS 7” two-channel monitor with custom clearance lamp/camera mounting assembly and programmable multi-mount camera

Blue Bird Bus 250-8220-BLUBUS 7” two-channel monitor with custom clearance lamp/camera mounting assembly and programmable multi-mount camera

The VSM Difference

At Vehicle Safety Manufacturing, precision manufacturing is at the heart of all that we do. As a company with an intense focus on quality control, we openly submit our manufacturing processes to annual inspections and are proud to carry both ISO 14001 and IATF 16949 certifications. Our customers know that when they buy a VSM products, they are getting quality components every time.
