Round and Oval LED Stop/Tail/Turn Signal Lamps by VSM

Vehicle Safety Manufacturing offers the widest assortment of LED stop/tail/turn signal lamps in the OE and aftermarket heavy-duty truck segment to fulfill the needs of customers working in the harshest environments including material handling, construction, agriculture, forestry, mining and other on and off-road equipment and truck applications. VSM's durable, low-voltage lamps meet or exceed SAE and DOT specifications and include long-life LEDs meaning no more replacing broken bulbs. Learn more about our individual stop, tail and turn signal LED lamps below and feel free to contact us if you have any questions or require a customized solution.

New LED Stop/Tail/Turn Signal Lamp Options

VSM is pleased to introduce our all-new Stop/Tail/Turn Signal lamps including the flush-mount 4-inch VSM4468RF (12-piece bulk packaged) and VSM4468RFD (single) with built-in Reflex Flange, as well as the 6-inch VSM6440 (12-piece bulk packaged) and VSM6440D (single) oval 10-diode lamp with Sure Seal connector. These lamps are in stock and available for immediate shipment. Learn more below:

VSM4468RF / VSM4468RFD Reflex Flange 4-inch S/T/T Lamp

VSM4468RF Reflex Flange 4-inch S/T/T Lamp

Click image to enlarge...

More Images

Reflex Flange 4-inch S/T/T Lamp Reflex Flange 4-inch S/T/T Lamp Reflex Flange 4-inch S/T/T Lamp Reflex Flange 4-inch S/T/T Lamp

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.5” (D) Lamp
  • Retail Package Available
  • Product Installation
  • Flush-Mount Design Protects Lamp
  • Three-Hole Mounting Pattern
  • Product Construction
  • Sonically Sealed Lens/Housing
  • RED PMMA Lens
  • White ABS Housing
  • Black ABS Bezel
  • Product Wiring
  • Two-Contact Power Input
  • Uses VSM9124 Pigtail
  • Other Product Details
  • 10-Piece Super Flux LED
  • Epoxy-Sealed Electronics
  • Current Draw .193 / .063 A at 12.8V
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Photometric Regulations
  • SAE J1398
  • SAE J585e
  • SAE J592e
  • SAE J594f

VSM6440 / VSM6440D 6-inch Oval S/T/T Lamp

VSM6440 6-inch oval LED stop, tail, turn signal lamp

Click image to enlarge...

More Images

VSM6440 6-inch oval LED stop, tail, turn signal lamp VSM6440 6-inch oval LED stop, tail, turn signal lamp VSM6440 6-inch oval LED stop, tail, turn signal lamp VSM6440 6-inch oval LED stop, tail, turn signal lamp

Click images to enlarge...

Features

  • Product Dimensions
  • 6.5” (W) x 2.25” (H) x 1.85” (D) Lamp
  • Retail Package Available
  • Product Installation
  • Fits Standard 6" Oval Grommet
  • VSM9526 and VSM9167 Available
  • Stainless/Black Mounting Brackets
  • Product Construction
  • Sonically Sealed Lens/Housing
  • Scratch Resistant PMMA Lens
  • High Impact ABS Housing
  • Product Wiring
  • Sure Seal Connector
  • PL3 Adapter VSM9427 Pigtail
  • Other Product Details
  • 10-Piece Super Flux LED
  • Epoxy-Sealed Electronics
  • Current Draw .193 / .063 Amps at 12.8V
  • 9V-16V Operating Voltage
  • 3 Year Warranty

VSM44544 High-Diode Red Turn Signal/Parking Lamp

44544 High-Diode Red Turn Signal/Parking Lamp

Click image to enlarge...

More Images

44544 High-Diode Red Turn Signal/Parking Lamp 44544 High-Diode Red Turn Signal/Parking Lamp 44544 High-Diode Red Turn Signal/Parking Lamp 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 4.3” (W) x 4.3” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM44644 Lamp
  • Includes VSM9127 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 24 Super-Flux Diodes
  • Current Draw .42 A at 13.5V
  • 3 Year Warranty

VSM6454 6-inch Oval Red S/T/T Lamp

6454 6-inch Oval Red S/T/T Lamp with Grommet and Pigtail

Click image to enlarge...

More Images

6454 6-inch Oval Red S/T/T Lamp with Grommet and Pigtail 6454 6-inch Oval Red S/T/T Lamp with Grommet and Pigtail 6454 6-inch Oval Red S/T/T Lamp with Grommet and Pigtail 9124 Double-Contact Pigtail Harness (Included with VSM6454)

Click images to enlarge...

Features

  • Product Dimensions
  • 6.5” (L) x 2.25” (H) x 1.85” (W) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6464 Lamp
  • Includes VSM9526 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .21 A at 12.8V
  • 3 Year Warranty

VSM6454RC 6-inch Oval Red (Clear Lens) S/T/T Lamp

6454RC 6-inch Oval Red S/T/T Lamp with Grommet and Pigtail

Click image to enlarge...

More Images

6454RC 6-inch Oval Red S/T/T Lamp with Grommet and Pigtail 6454RC 6-inch Oval Red S/T/T Lamp with Grommet and Pigtail 6454RC 6-inch Oval Red S/T/T Lamp with Grommet and Pigtail 9124 Double-Contact Pigtail Harness (Included with VSM6454RC)

Click images to enlarge...

Features

  • Product Dimensions
  • 6.5” (L) x 2.25” (H) x 1.85” (W) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6464RC Lamp
  • Includes VSM9526 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .21 A at 12.8V
  • 3 Year Warranty

VSM6454AC 6-inch Oval Amber (Clear Lens) S/T/T Lamp

6454AC 6-inch Oval Amber T/P Lamp with Grommet and Pigtail

Click image to enlarge...

More Images

6454AC 6-inch Oval Amber T/P Lamp with Grommet and Pigtail 6454AC 6-inch Oval Amber T/P Lamp with Grommet and Pigtail 6454AC 6-inch Oval Amber T/P Lamp with Grommet and Pigtail 9124 Double-Contact Pigtail Harness (Included with VSM6454AC)

Click images to enlarge...

Features

  • Product Dimensions
  • 6.5” (L) x 2.25” (H) x 1.85” (W) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6464AC Lamp
  • Includes VSM9526 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .21 A at 12.8V
  • 3 Year Warranty

VSM6457 6-inch Oval Red S/T/T Lamp

6457 6-inch Oval Red S/T/T Lamp with Grey Flange Mount

Click image to enlarge...

More Images

6457 6-inch Oval Red S/T/T Lamp with Grey Flange Mount 6457 6-inch Oval Red S/T/T Lamp with Grey Flange Mount 6457 6-inch Oval Red S/T/T Lamp with Grey Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM6457)

Click images to enlarge...

Features

  • Product Dimensions
  • 7.56” (L) x 3.31” (H) x 2.17” (W) Lamp
  • Product Installation
  • Mounts Into Standard Flange
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6464 Lamp
  • Includes VSM9637 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .21 A at 12.8V
  • 3 Year Warranty

VSM6457A 6-inch Oval Amber Auxiliary Lamp

6457A 6-inch Oval Amber Auxiliary Lamp with Grey Flange Mount

Click image to enlarge...

More Images

6457A 6-inch Oval Amber Auxiliary Lamp with Grey Flange Mount 6457A 6-inch Oval Amber Auxiliary Lamp with Grey Flange Mount 6457A 6-inch Oval Amber Auxiliary Lamp with Grey Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM6457)

Click images to enlarge...

Features

  • Product Dimensions
  • 7.56” (L) x 3.31” (H) x 2.17” (W) Lamp
  • Product Installation
  • Mounts Into Standard Flange
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6464A Lamp
  • Includes VSM9637 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .21 A at 12.8V
  • 3 Year Warranty

VSM6458 6-inch Oval Red S/T/T Lamp

6458 6-inch Oval Red S/T/T Lamp with Black Flange Mount

Click image to enlarge...

More Images

6458 6-inch Oval Red S/T/T Lamp with Black Flange Mount 6458 6-inch Oval Red S/T/T Lamp with Black Flange Mount 6458 6-inch Oval Red S/T/T Lamp with Black Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM6458)

Click images to enlarge...

Features

  • Product Dimensions
  • 7.56” (L) x 3.31” (H) x 2.17” (W) Lamp
  • Product Installation
  • Mounts Into Standard Flange
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6464 Lamp
  • Includes VSM9638 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .21 A at 12.8V
  • 3 Year Warranty

VSM6458A 6-inch Oval Amber Auxiliary Lamp

6458A 6-inch Oval Amber Auxiliary Lamp with Black Flange Mount

Click image to enlarge...

More Images

6458A 6-inch Oval Amber Auxiliary Lamp with Black Flange Mount 6458A 6-inch Oval Amber Auxiliary Lamp with Black Flange Mount 6458A 6-inch Oval Amber Auxiliary Lamp with Black Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM6457)

Click images to enlarge...

Features

  • Product Dimensions
  • 7.56” (L) x 3.31” (H) x 2.17” (W) Lamp
  • Product Installation
  • Mounts Into Standard Flange
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6464A Lamp
  • Includes VSM9638 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .21 A at 12.8V
  • 3 Year Warranty

VSM6459 6-inch Oval Red S/T/T Lamp

6459 6-inch Oval Red S/T/T Lamp with Chrome Flange Mount

Click image to enlarge...

More Images

6459 6-inch Oval Red S/T/T Lamp with Chrome Flange Mount 6459 6-inch Oval Red S/T/T Lamp with Chrome Flange Mount 6459 6-inch Oval Red S/T/T Lamp with Chrome Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM6459)

Click images to enlarge...

Features

  • Product Dimensions
  • 7.56” (L) x 3.31” (H) x 2.17” (W) Lamp
  • Product Installation
  • Mounts Into Standard Flange
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6464 Lamp
  • Includes VSM9639 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .21 A at 12.8V
  • 3 Year Warranty

VSM6459A 6-inch Oval Amber Auxiliary Lamp

6459A 6-inch Oval Amber Auxiliary Lamp with Chrome Flange Mount

Click image to enlarge...

More Images

6459A 6-inch Oval Amber Auxiliary Lamp with Chrome Flange Mount 6459A 6-inch Oval Amber Auxiliary Lamp with Chrome Flange Mount 6459A 6-inch Oval Amber Auxiliary Lamp with Chrome Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM6457)

Click images to enlarge...

Features

  • Product Dimensions
  • 7.56” (L) x 3.31” (H) x 2.17” (W) Lamp
  • Product Installation
  • Mounts Into Standard Flange
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6464A Lamp
  • Includes VSM9639 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .21 A at 12.8V
  • 3 Year Warranty

Stop/Tail/Turn Signal Lamps (Light Only)

VSM4440 4" Red S/T/T

VSM4440 low-profile 4-inch 10-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM4458 4" Red S/T/T

VSM4458 flange-mount 4-inch 10-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM4464 4" Red S/T/T

VSM4464 4-inch 10-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM4464RC 4" Red S/T/T

VSM4464RC 4-inch 10-diode red stop/tail/turn signal lamp with clear lens

Click image to enlarge...

VSM4467 4" Red S/T/T

VSM4467 4-inch 10-diode red stop/tail/turn signal lamp with grey flange

Click image to enlarge...

VSM4468 4" Red S/T/T

VSM4468 4-inch 10-diode red stop/tail/turn signal lamp with black flange

Click image to enlarge...

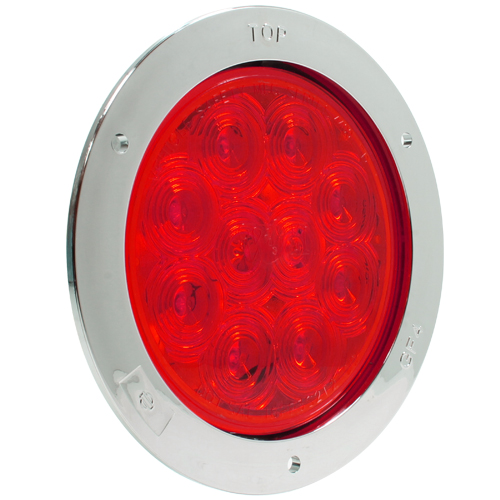

VSM4469 4" Red S/T/T

VSM4469 4-inch 10-diode red stop/tail/turn signal lamp with chrome flange

Click image to enlarge...

VSM6467A 6" Amber Auxiliary

VSM6467A 6-inch 10-diode amber auxiliary lamp with grey flange mount

Click image to enlarge...

VSM6467 6" Red S/T/T

VSM6467 6-inch 10-diode red stop/tail/turn signal lamp with grey flange mount

Click image to enlarge...

VSM6468A 6" Amber Auxiliary

VSM6468A 6-inch 10-diode amber auxiliary lamp with black flange mount

Click image to enlarge...

VSM6468 6" Red S/T/T

VSM6468 6-inch 10-diode red stop/tail/turn signal lamp with black flange mount

Click image to enlarge...

VSM6469A 6" Amber Auxiliary

VSM6469A 6-inch 10-diode amber auxiliary lamp with chrome flange mount

Click image to enlarge...

VSM6469 6" Red S/T/T

VSM6469 6-inch 10-diode red stop/tail/turn signal lamp with chrome flange mount

Click image to enlarge...

VSM44644 4" Red S/T/T

VSM44644 4-inch 24-diode red turn signal and parking light

Click image to enlarge...

VSM44644AC 4" Amber T/P

VSM44644AC 4-inch 24-diode amber turn signal and parking light with clear lens

Click image to enlarge...

VSM44644RC 4" Red S/T/T

VSM44644AC 4-inch 24-diode red turn signal and parking light with clear lens

Click image to enlarge...

VSM6464A 6" Amber T/P

VSM6464A 4-inch 10-diode amber auxiliary lamp

Click image to enlarge...

VSM6464 6" Red S/T/T

VSM6464 4-inch 10-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM6464AC 6" Amber T/P

VSM6464AC 4-inch 10-diode amber turn signal/parking lamp

Click image to enlarge...

VSM6464RC 6" Red S/T/T

VSM6464RC 4-inch 10-diode amber stop/tail/turn signal lamp

Click image to enlarge...

VSM64644 6" Red S/T/T

VSM64644 4-inch 24-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM64644A 6" Amber Auxiliary

VSM64644A 4-inch 24-diode amber auxiliary lamp

Click image to enlarge...

VSM64644AC 6" Amber T/P

VSM64644AC 6-inch 24-diode amber auxiliary lamp with clear lens

Click image to enlarge...

VSM64644RC 6" Red S/T/T

VSM64644RC 6-inch 24-diode red stop/tail/turn signal lamp with clear lens

Click image to enlarge...

VSM4468RF 4" Red S/T/T

VSM4468RF reflective flange-mount 4-inch 10-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM6440 6" Red S/T/T

VSM6440 low-profile 6-inch 10-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM6456 6" Red S/T/T

VSM6456 surface-mount 6-inch 10-diode red stop/tail/turn signal lamp with chrome bezel

Click image to enlarge...

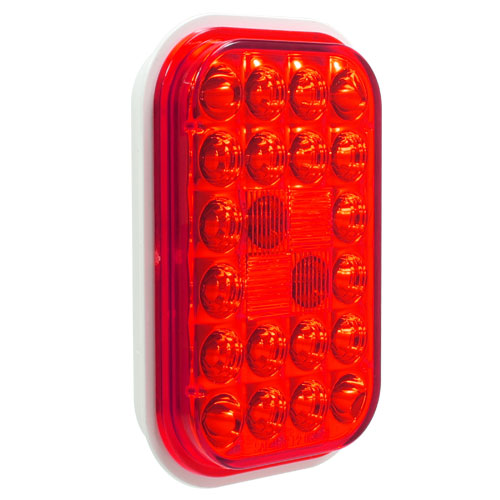

VSM45644 Rectangle S/T/T

VSM45644 rectangular red 4500-series stop/tail/turn signal lamp

Click image to enlarge...
