Round and Oval Incandescent Stop/Tail/Turn Signal Lamps by VSM
Vehicle Safety Manufacturing offers the widest assortment of incandescent stop/tail/turn signal lamps in the OE and aftermarket heavy-duty truck segment to fulfill the needs of customers working in the harshest environments including material handling, construction, agriculture, forestry, mining and other on and off-road equipment and truck applications. VSM's durable, low-voltage lamps meet or exceed SAE and DOT specifications and include innovations designed to extend the life of both the lamp assembly and bulbs. Learn more about our individual stop, tail and turn signal Incandescent lamps below and feel free to contact us if you have any questions or require a customized solution.
Amber and Red Stop/Tail/Turn Signal Lamp Kit

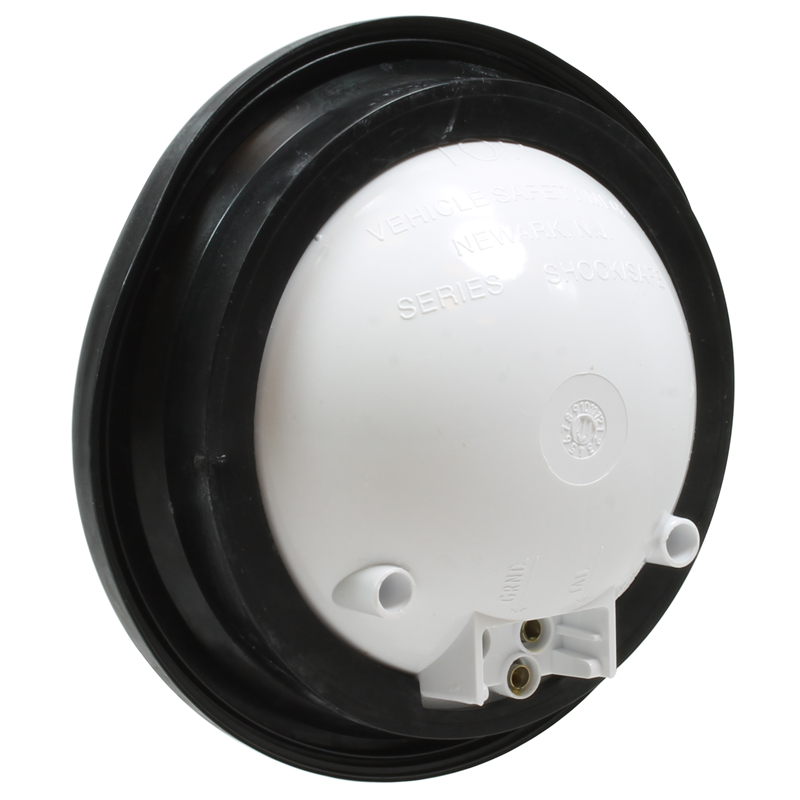

VSM4054A Amber 4-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 4.3” (W) x 4.3” (H) x 1.85” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4064A Lamp
- Includes VSM9127 Grommet
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
- Lamp With Snap-In Flange
- VSM4067A Includes Gray Flange
- VSM4068A Includes Black Flange
- VSM4069A Includes Chrome Flange
VSM4054 Red 4-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 4.3” (W) x 4.3” (H) x 1.85” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4064A Lamp
- Includes VSM9127 Grommet
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
- Lamp With Snap-In Flange
- VSM4067A Includes Gray Flange
- VSM4068A Includes Black Flange
- VSM4069A Includes Chrome Flange
VSM4057A Amber 4-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4067A Lamp
- Includes VSM9131 Flange
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
- Lamp With Snap-In Flange
- VSM4067A Includes Gray Flange
- VSM4068A Includes Black Flange
- VSM4069A Includes Chrome Flange
VSM4057 Red 4-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4067A Lamp
- Includes VSM9131 Flange
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
- Lamp With Snap-In Flange
- VSM4067A Includes Gray Flange
- VSM4068A Includes Black Flange
- VSM4069A Includes Chrome Flange
VSM4058A Amber 4-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4068A Lamp
- Includes VSM9132 Flange
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
- Lamp With Snap-In Flange
- VSM4067A Includes Gray Flange
- VSM4068A Includes Black Flange
- VSM4069A Includes Chrome Flange
VSM4058 Red 4-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4068A Lamp
- Includes VSM9132 Flange
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
- Lamp With Snap-In Flange
- VSM4067A Includes Gray Flange
- VSM4068A Includes Black Flange
- VSM4069A Includes Chrome Flange
VSM4059A Amber 4-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4068A Lamp
- Includes VSM9132C Flange
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
- Lamp With Snap-In Flange
- VSM4067A Includes Gray Flange
- VSM4068A Includes Black Flange
- VSM4069A Includes Chrome Flange

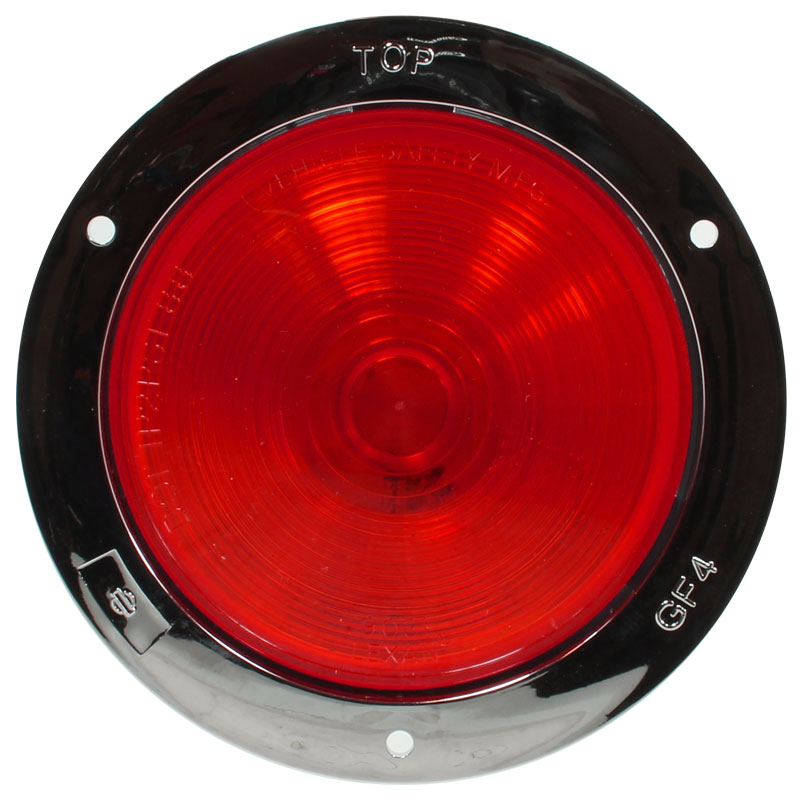

VSM4059 Red 4-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4068A Lamp
- Includes VSM9132C Flange
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
- Lamp With Snap-In Flange
- VSM4067A Includes Gray Flange
- VSM4068A Includes Black Flange
- VSM4069A Includes Chrome Flange
VSM4554A Amber Rectangular Auxiliary Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 6.34” (W) x 4.43” (H) x 1.69” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4564A Lamp
- Includes VSM9175 Grommet
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
VSM4554 Red Rectangular S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 6.34” (W) x 4.43” (H) x 1.69” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM4564A Lamp
- Includes VSM9175 Grommet
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
VSM6054A Amber 6-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 6.5” (W) x 2.25” (H) x 2.5” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM6064A Lamp
- Includes VSM9526 Grommet
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
VSM6054 Amber 6-inch S/T/T Lamp
Click image to enlarge...
More Images
Click images to enlarge...
Features
- Product Dimensions
- 6.5” (W) x 2.25” (H) x 2.5” (D) Lamp
- Product Installation
- Mounts Into Standard Grommet
- Product Construction
- Polycarbonate Lens and Housing
- Sonically Welded Lens/Base
- Product Wiring
- Two-Contact Power Input
- Includes VSM6064A Lamp
- Includes VSM9526 Grommet
- Includes VSM9124 Pigtail
- Other Product Details
- Shock-Safe Bulb Mount
- Current Draw 2.1 A at 12.8V (Stop/Turn)
- Current Draw .33 A at 14V (Tail)
- 9V-16V Operating Voltage
- 3 Year Warranty
Amber and Red LED S/T/T Lamps (Light Only)
VSM522 Round Stop/Tail/Turn Signal Lamp
Click image to enlarge...
VSM4064A 4" Stop/Tail/Turn Signal Lamp
Click image to enlarge...
VSM4064 4" Stop/Tail/Turn Signal Lamp
Click image to enlarge...
VSM4067A 4" Stop/Tail/Turn Signal Lamp, Grey Flange
Click image to enlarge...
VSM4067 4" Stop/Tail/Turn Signal Lamp, Grey Flange
Click image to enlarge...
VSM4068A 4" Stop/Tail/Turn Signal Lamp, Black Flange
Click image to enlarge...
VSM4068 4" Stop/Tail/Turn Signal Lamp, Black Flange
Click image to enlarge...

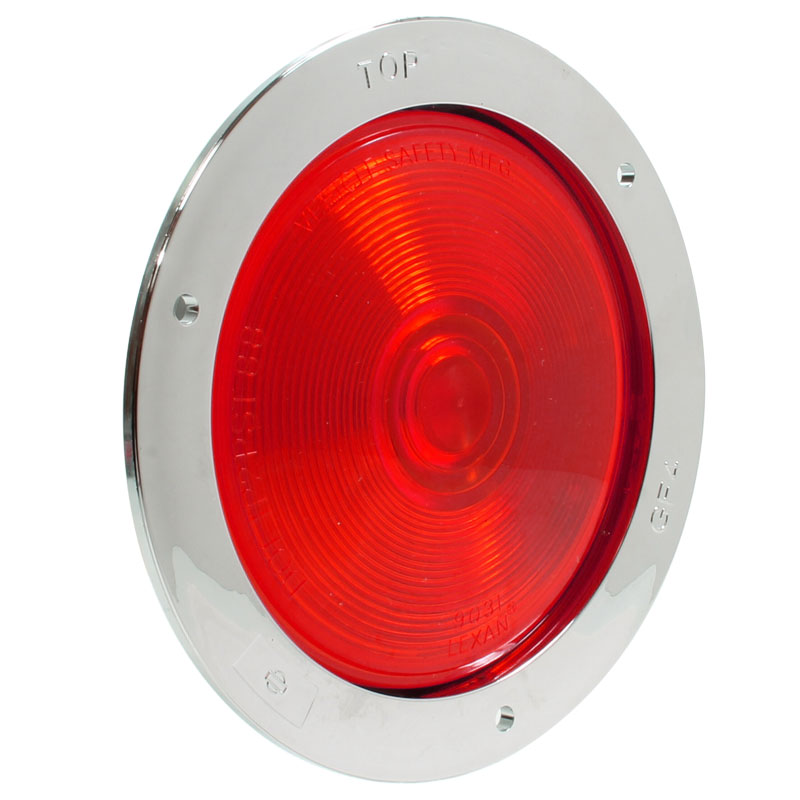

VSM4069A 4" Stop/Tail/Turn Signal Lamp, Chrome Flange
Click image to enlarge...
VSM4069 4" Stop/Tail/Turn Signal Lamp, Chrome Flange
Click image to enlarge...
VSM4212 Double Contact Stop/Tail/Turn Signal Lamp
Click image to enlarge...
VSM4564A Rectangular Stop/Tail/Turn Signal Lamp
Click image to enlarge...
VSM4564 Rectangular Stop/Tail/Turn Signal Lamp
Click image to enlarge...
VSM6064A 6" Amber Stop/Tail/Turn Signal Lamp
Click image to enlarge...
VSM6064 6" Red Stop/Tail/Turn Signal Lamp
Click image to enlarge...
