Universal Strobe and Warning Lamps by VSM
Vehicle Safety Manufacturing offers the widest assortment of LED stop/tail/turn signal lamps in the OE and aftermarket heavy-duty truck segment to fulfill the needs of customers working in the harshest environments including material handling, construction, agriculture, forestry, mining and other on and off-road equipment and truck applications. VSM's durable, low-voltage lamps meet or exceed SAE and DOT specifications and include long-life LEDs meaning no more replacing broken bulbs. Learn more about our individual stop, tail and turn signal LED lamps below and feel free to contact us if you have any questions or require a customized solution.
VSM303A Double Flash Rubber Base Strobe Lamp
Click image to enlarge...
Features
- Product Dimensions
- 4 5/8" Overall Height
- Product Installation
- Two-Hole Mounting Pattern
- 4" Diamater (Center to Center)
- Product Construction
- Polycarbonate Dome
- Rubber Base
- Product Wiring
- Two-Contact Power Input
- Other Product Details
- Hard-Wired Design
- Diode Protected
- SAE-J1318, Class 3
- 2.5 Joules
- Double Flash
- 12-48 VDC Operating Voltage
- 3 Year Warranty
- See Service Items Below
VSM306A Multi-Voltage Compact Strobe Lamp
Click image to enlarge...
Features
- Product Dimensions
- 5" Overall Height
- 2 3⁄4" Base Diameter
- Product Installation
- Two-Hole Mounting Pattern
- #10 Screws, 3 3/8" Centers
- Product Construction
- Polycarbonate Base and Dome
- Product Wiring
- Two-Contact Power Input
- Other Product Details
- Hard-Wired Design
- 72 FPM 2 Joules Flash Rate
- Single Flash
- 12-120 VDC Operating Voltage
- 0.24 Amp Draw
- 3 Year Warranty
VSM306ALED Multi-Voltage Compact LED Strobe Lamp
Click image to enlarge...
Features
- Product Dimensions
- 5" Overall Height
- 2 3⁄4" Base Diameter
- Product Installation
- Two-Hole Mounting Pattern
- #10 Screws, 3 3/8" Centers
- Product Construction
- Polycarbonate Base and Dome
- Product Wiring
- Two-Contact Power Input
- Other Product Details
- Hard-Wired Design
- 72 FPM 2 Joules Flash Rate
- Single Flash LED
- 12-120 VDC Operating Voltage
- 0.24 Amp Draw
- 3 Year Warranty
VSM307A Multi-Voltage Strobe Lamp
Click image to enlarge...
Features
- Product Dimensions
- 5" Diameter Base
- 3 5/8" Low-Profile Height
- Product Installation
- Three-Hole Mounting Pattern
- Three-Hole Gasket and Ring
- Product Construction
- ABS Base
- Product Wiring
- Two-Contact Power Input
- Other Product Details
- Hard-Wired Design
- SAE-J1318, Class 3
- SAE, UL, and CE Approved
- 2 Joules Single Flash
- 12-80 VDC Operating Voltage
- 3 Year Warranty
VSM307ALED Multi-Voltage LED Strobe Lamp
Click image to enlarge...
Features
- Product Dimensions
- 5" Diameter Base
- 3 5/8" Low-Profile Height
- Product Installation
- Three-Hole Mounting Pattern
- Three-Hole Gasket and Ring
- Product Construction
- ABS Base
- Product Wiring
- Two-Contact Power Input
- Other Product Details
- Hard-Wired Design
- SAE-J1318, Class 3
- SAE, UL, and CE Approved
- 2 Joules Single Flash LED
- 12-80 VDC Operating Voltage
- 3 Year Warranty
VSM310A High-Profile 360-Degree Strobe Warning Lamp
Click image to enlarge...
Features
- Product Dimensions
- 6.75" Diameter Aluminum Base
- 6.25" Amber High-Profile Lens
- Product Installation
- Three-Hole Mounting Pattern
- Rubber Mounting Gasket
- Product Construction
- Epoxy Coated Electronics
- Product Wiring
- Two-Contact Power Input
- Other Product Details
- Hard-Wired Design
- 1" Pipe Mount Standard
- SAE-J1318
- SAE-Class 1 and 2
- 15 Joules Quad Flash
- 12-24 VDC Operating Voltage
- 3 Year Warranty
- See Service Items Below
VSM310AD High-Profile 360-Degree Strobe Warning Lamp
Click image to enlarge...
Features
- Product Dimensions
- 6.75" Diameter Aluminum Base
- 6.25" Amber High-Profile Lens
- Product Installation
- Three-Hole Mounting Pattern
- Rubber Mounting Gasket
- Product Construction
- Epoxy Coated Electronics
- Product Wiring
- Two-Contact Power Input
VSM310AM High-Profile 360-Degree Strobe Warning Lamp
Click image to enlarge...
Features
- Product Dimensions
- 6.75" Diameter Aluminum Base
- 6.25" Amber High-Profile Lens
- Product Installation
- Three-Hole Mounting Pattern
- Magnetic Mounting Base
- Product Construction
- Epoxy Coated Electronics
- Product Wiring
- Two-Contact Power Input
- Other Product Details
- Hard-Wired Design
- Includes Cigarette Lighter Plug
- SAE-J1318
- SAE-Class 1 and 2
- 15 Joules Quad Flash
- 12-24 VDC Operating Voltage
- 3 Year Warranty
- See Service Items Below

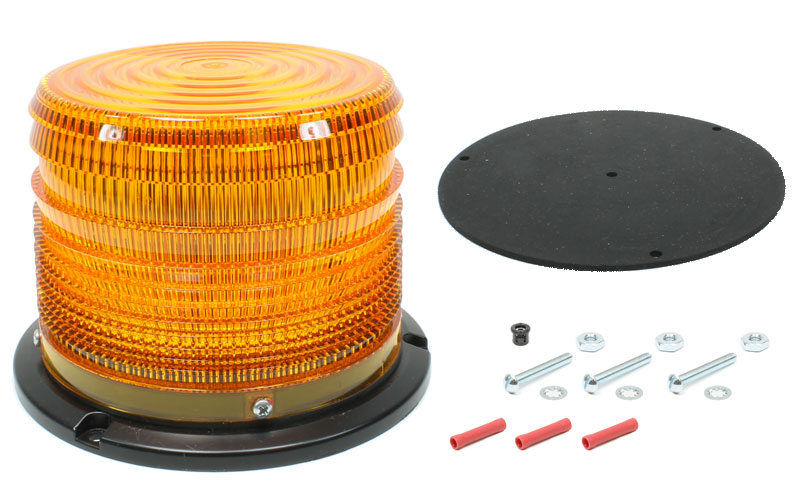

VSM310ALP Low-Profile 360-Degree Strobe Warning Lamp
Click image to enlarge...
Features
- Product Dimensions
- 6.75" Diameter Aluminum Base
- 4.5" Amber Low-Profile Lens
- Product Installation
- Three-Hole Mounting Pattern
- Rubber Mounting Gasket
- Product Construction
- Epoxy Coated Electronics
- Product Wiring
- Three-Contact Power Input
- Other Product Details
- Hard-Wired Design
- 1" Pipe Mount Standard
- SAE-J1318
- SAE-Class 1 and 2
- 15 Joules Quad Flash
- 12-24 VDC Operating Voltage
- 3 Year Warranty
- See Service Items Below

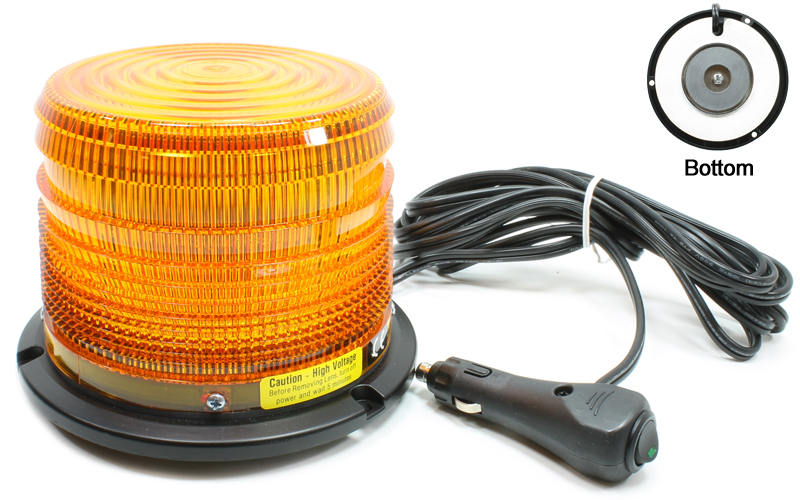

VSM310ALPM Low-Profile 360-Degree Strobe Warning Lamp
Click image to enlarge...
Features
- Product Dimensions
- 6.75" Diameter Aluminum Base
- 4.5" Amber Low-Profile Lens
- Product Installation
- Magnetic Mounting Base
- Cigarette Lighter Plug Power Input
- Product Construction
- Epoxy Coated Electronics
- Product Wiring
- Two-Contact Power Input
- Other Product Details
- Hard-Wired Design
- SAE-J1318
- SAE-Class 1 and 2
- 15 Joules Quad Flash
- 12-24 VDC Operating Voltage
- 3 Year Warranty
- See Service Items Below
VSM313A Multi-Voltage Strobe Lamp (Magnetic Base)
Click image to enlarge...
Features
- Product Dimensions
- 5" Diameter Base
- 3 5/8" Low-Profile Height
- Product Installation
- Magnetic Base
- Product Construction
- ABS Base
- Product Wiring
- Two-Contact Power Input
- Other Product Details
- Hard-Wired Design
- Includes Cigarette Lighter Plug
- SAE-J1318, Class 3
- SAE, UL, and CE Approved
- 2 Joules Single Flash
- 12-80 VDC Operating Voltage
- 3 Year Warranty
- See Service Items Below
VSM4500M Red Portable LED Warning Lamp (Magnet Mount)
Click image to enlarge...
Features
- Product Dimensions
- 6 3/8" x 4" x 1 3/4"
- .420 lbs (6.72 oz) Without Batteries
- Product Installation
- Dual Magnet Base
- Product Construction
- ABS Housing\PMMA Lens
- Product Wiring
- Requires Four (1.5V) AA Batteries
- Other Product Details
- Ideal for Roadside Emergencies
- 18 Super Bright Diodes
- Visibility Up To 1.3 Miles
- Weather-Resistant Design
- Compact Size
- Completely Portable
- Alternative to Safety Flares
- 3 Year Warranty
VSM4500K Red Portable LED Warning Lamp (Bracket Mount)
Click image to enlarge...
Features
- Product Dimensions
- 6 3/8" x 4" x 1 3/4"
- .420 lbs (6.72 oz) Without Batteries
- Product Installation
- Bracket Mount for Logging Trucks
- Product Construction
- ABS Housing\PMMA Lens
- Product Wiring
- Requires Four (1.5V) AA Batteries
- Other Product Details
- Quickly Mark the End of a Load
- 18 Super Bright Diodes
- Visibility Up To 1.3 Miles
- Weather-Resistant Design
- Compact Size
- Completely Portable
- 3 Year Warranty
VSM4500AK Red Portable LED Warning Lamp (Bracket Mount)
Click image to enlarge...
Features
- Product Dimensions
- 6 3/8" x 4" x 1 3/4"
- .420 lbs (6.72 oz) Without Batteries
- Product Installation
- Bracket Mount for Logging Trucks
- Product Construction
- ABS Housing\PMMA Lens
- Product Wiring
- Requires Four (1.5V) AA Batteries
- Other Product Details
- Quickly Mark the End of a Load
- 18 Super Bright Diodes
- Visibility Up To 1.3 Miles
- Weather-Resistant Design
- Compact Size
- Completely Portable
- 3 Year Warranty
VSM46644A 4" Round LED Quad Strobe Lamp
Click image to enlarge...
Features
- Product Dimensions
- 4 1/4" x 1 3/4"
- Product Installation
- Bracket Mount for Logging Trucks
- Product Construction
- ABS Housing\PMMA Lens
- Product Wiring
- Requires Four (1.5V) AA Batteries
- Other Product Details
- Quickly Mark the End of a Load
- 18 Super Bright Diodes
- Visibility Up To 1.3 Miles
- Weather-Resistant Design
- Compact Size
- Service Components
- VSM9127 Open Back Grommet
- VSM9137 Closed Back Grommet
- VSM9124 Double Contact Pigtail
- 3 Year Warranty
VSM Strobe/Warning Lamp Service Items
VSM88310 Quad Flash Tube
Click image to enlarge...

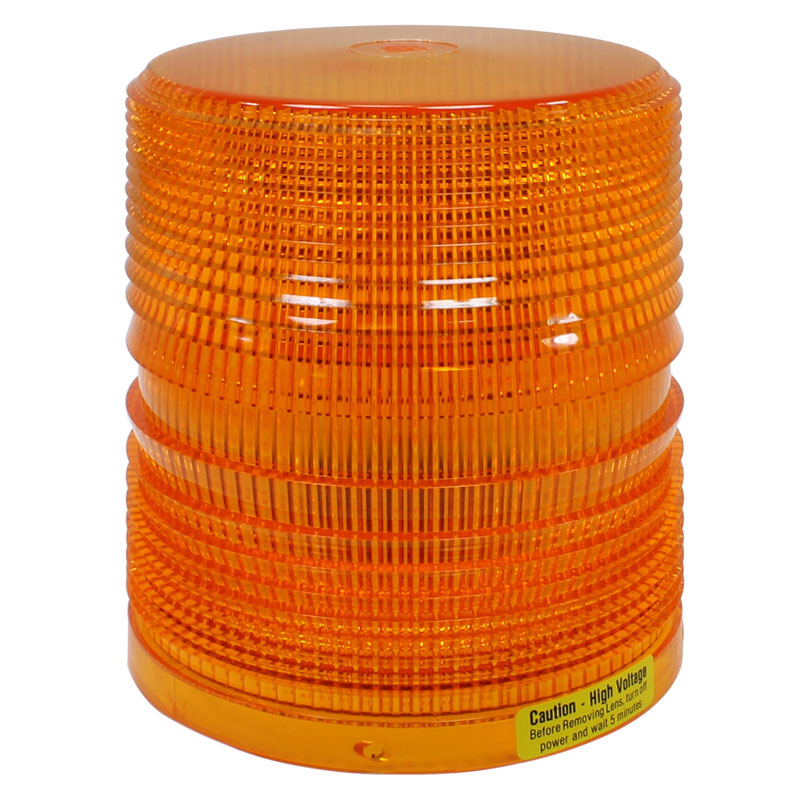

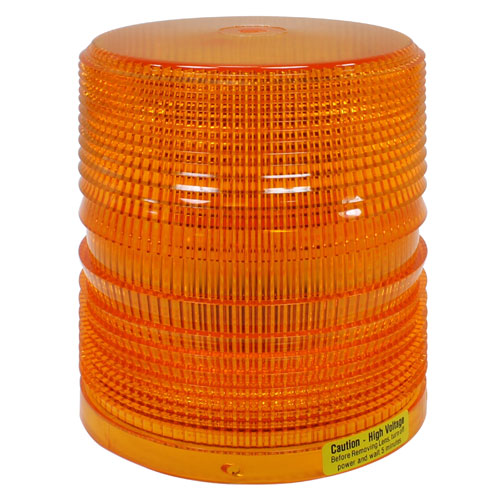

VSM9113A Amber Lens
Click image to enlarge...
VSM9113AL Amber Lens
Click image to enlarge...
VSM9340W Clear Dust Cover
Click image to enlarge...

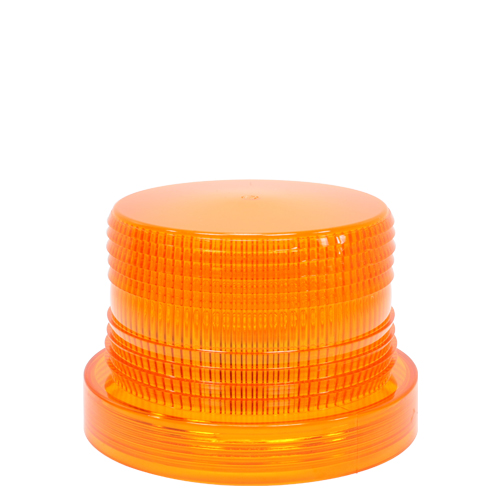

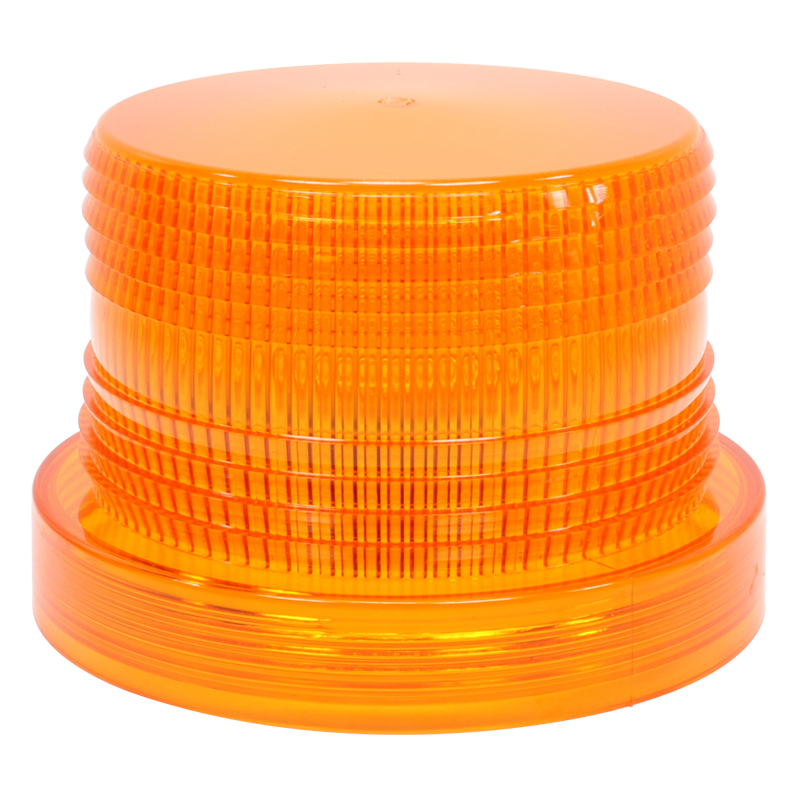

VSM9374A Amber Lens
Click image to enlarge...
