Round and Oval Incandescent Backup Lamps by VSM

Vehicle Safety Manufacturing offers the widest assortment of incandescent backup lamps in the OE and aftermarket heavy-duty truck segment to fulfill the needs of customers working in the harshest environments including material handling, construction, agriculture, forestry, mining and other on and off-road equipment and truck applications. VSM's durable, low-voltage lamps meet or exceed SAE and DOT specifications and include innovations designed to extend the life of both the lamp assembly and bulbs. Learn more about our individual stop, tail and turn signal Incandescent lamps below and feel free to contact us if you have any questions or require a customized solution.

Clear Backup Lamp Kits

VSM4054C Clear 4-inch Backup Lamp

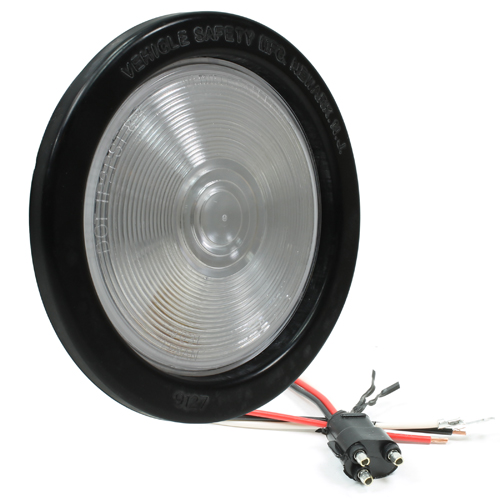

VSM4054C 4-inch backup lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM4054C 4-inch backup lamp with grommet and pigtail harness VSM4054C 4-inch backup lamp with grommet and pigtail harness VSM4054C 4-inch backup lamp with grommet and pigtail harness VSM4054C 4-inch backup lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 4.3” (W) x 4.3” (H) x 1.85” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4064C Lamp
  • Includes VSM9127 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty

VSM4054W White 4-inch Backup Lamp

VSM4054W 4-inch backup lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM4054W 4-inch backup lamp with grommet and pigtail harness VSM4054W 4-inch backup lamp with grommet and pigtail harness VSM4054W 4-inch backup lamp with grommet and pigtail harness VSM4054W 4-inch backup lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 4.3” (W) x 4.3” (H) x 1.85” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4064W Lamp
  • Includes VSM9127 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty

VSM6054W White 6-inch Backup Lamp

VSM6054W 6-inch backup lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM6054W 6-inch backup lamp with grommet and pigtail harness VSM6054W 6-inch backup lamp with grommet and pigtail harness VSM6054W 6-inch backup lamp with grommet and pigtail harness VSM6054W 6-inch backup lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 6.5” (W) x 2.25” (H) x 2.5” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6064W Lamp
  • Includes VSM9526 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty

VSM4553W Rectangle Backup Lamp With Reflector Lens

VSM4553W reflector lens rectangle backup lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM4553W reflector lens rectangle backup lamp with grommet and pigtail harness VSM4553W reflector lens rectangle backup lamp with grommet and pigtail harness VSM4553W reflector lens rectangle backup lamp with grommet and pigtail harness VSM4553W reflector lens rectangle backup lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 6.34” (W) x 4.43” (H) x 1.69” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4563W Lamp
  • Includes VSM9175 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .49 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty

Clear Backup Lamps (Light Only)

VSM549W Surface Mount Back-Up Lamp

VSM549W Surface Mount Back-Up Lamp

Click image to enlarge...

VSM4063C 4" Clear Backup Lamp

VSM4063C 4-inch Sealed 4” Round Utility Lamp with Clear Lens

Click image to enlarge...

VSM4063W 4" Clear Backup Lamp

VSM4063W 4-inch Sealed 4” Round Utility Lamp with White Lens

Click image to enlarge...

VSM6064W 6" White Backup Lamp

VSM6064W 6-inch backup lamp with white lens

Click image to enlarge...

VSM4563W Rectangle Backup Lamp

VSM4563W 4500-series back-up lamp with reflector lense

Click image to enlarge...
