Round and Oval Incandescent Stop/Tail/Turn Signal Lamps by VSM

Vehicle Safety Manufacturing offers the widest assortment of incandescent stop/tail/turn signal lamps in the OE and aftermarket heavy-duty truck segment to fulfill the needs of customers working in the harshest environments including material handling, construction, agriculture, forestry, mining and other on and off-road equipment and truck applications. VSM's durable, low-voltage lamps meet or exceed SAE and DOT specifications and include innovations designed to extend the life of both the lamp assembly and bulbs. Learn more about our individual stop, tail and turn signal Incandescent lamps below and feel free to contact us if you have any questions or require a customized solution.

Amber and Red Stop/Tail/Turn Signal Lamp Kit

VSM4054A Amber 4-inch S/T/T Lamp

VSM4054A 4-inch stop/tail/turn signal lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM4054A 4-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM4054A 4-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM4054A 4-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM4054A 4-inch stop/tail/turn signal lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 4.3” (W) x 4.3” (H) x 1.85” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4064A Lamp
  • Includes VSM9127 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Lamp With Snap-In Flange
  • VSM4067A Includes Gray Flange
  • VSM4068A Includes Black Flange
  • VSM4069A Includes Chrome Flange

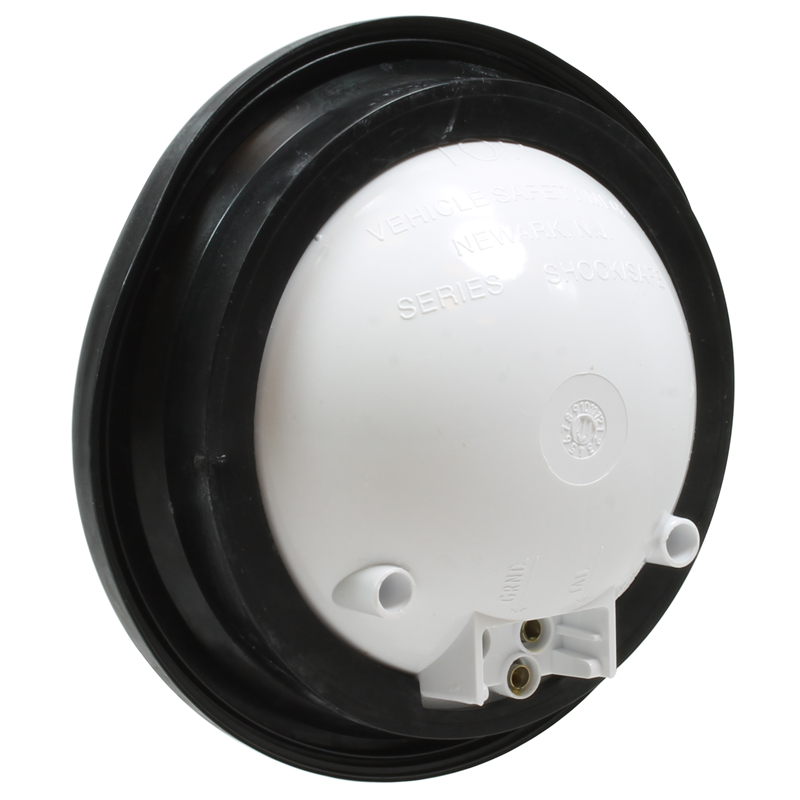

VSM4054 Red 4-inch S/T/T Lamp

VSM4054 4-inch stop/tail/turn signal lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM4054 4-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM4054 4-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM4054 4-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM4054 4-inch stop/tail/turn signal lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 4.3” (W) x 4.3” (H) x 1.85” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4064A Lamp
  • Includes VSM9127 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Lamp With Snap-In Flange
  • VSM4067A Includes Gray Flange
  • VSM4068A Includes Black Flange
  • VSM4069A Includes Chrome Flange

VSM4057A Amber 4-inch S/T/T Lamp

VSM4057A 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness

Click image to enlarge...

More Images

VSM4057A 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness VSM4057A 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness VSM4057A 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness VSM4057A 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4067A Lamp
  • Includes VSM9131 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Lamp With Snap-In Flange
  • VSM4067A Includes Gray Flange
  • VSM4068A Includes Black Flange
  • VSM4069A Includes Chrome Flange

VSM4057 Red 4-inch S/T/T Lamp

VSM4057 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness

Click image to enlarge...

More Images

VSM4057 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness VSM4057 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness VSM4057 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness VSM4057 4-inch stop/tail/turn signal lamp with grey flange and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4067A Lamp
  • Includes VSM9131 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Lamp With Snap-In Flange
  • VSM4067A Includes Gray Flange
  • VSM4068A Includes Black Flange
  • VSM4069A Includes Chrome Flange

VSM4058A Amber 4-inch S/T/T Lamp

VSM4058A 4-inch stop/tail/turn signal lamp with black flange and pigtail harness

Click image to enlarge...

More Images

VSM4058A 4-inch stop/tail/turn signal lamp with black flange and pigtail harness VSM4058A 4-inch stop/tail/turn signal lamp with black flange and pigtail harness VSM4058A 4-inch stop/tail/turn signal lamp with black flange and pigtail harness VSM4058A 4-inch stop/tail/turn signal lamp with black flange and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4068A Lamp
  • Includes VSM9132 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Lamp With Snap-In Flange
  • VSM4067A Includes Gray Flange
  • VSM4068A Includes Black Flange
  • VSM4069A Includes Chrome Flange

VSM4058 Red 4-inch S/T/T Lamp

VSM4058 4-inch stop/tail/turn signal lamp with black flange and pigtail harness

Click image to enlarge...

More Images

VSM4058 4-inch stop/tail/turn signal lamp with black flange and pigtail harness VSM4058 4-inch stop/tail/turn signal lamp with black flange and pigtail harness VSM4058 4-inch stop/tail/turn signal lamp with black flange and pigtail harness VSM4058 4-inch stop/tail/turn signal lamp with black flange and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4068A Lamp
  • Includes VSM9132 Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Lamp With Snap-In Flange
  • VSM4067A Includes Gray Flange
  • VSM4068A Includes Black Flange
  • VSM4069A Includes Chrome Flange

VSM4059A Amber 4-inch S/T/T Lamp

VSM4059A 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness

Click image to enlarge...

More Images

VSM4059A 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness VSM4059A 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness VSM4059A 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness VSM4059A 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4068A Lamp
  • Includes VSM9132C Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Lamp With Snap-In Flange
  • VSM4067A Includes Gray Flange
  • VSM4068A Includes Black Flange
  • VSM4069A Includes Chrome Flange

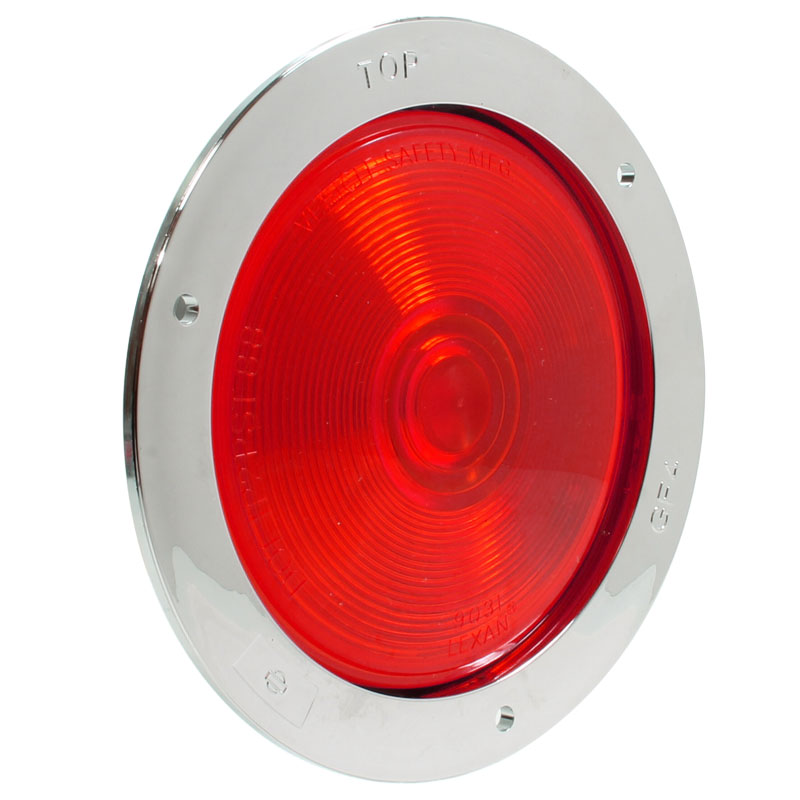

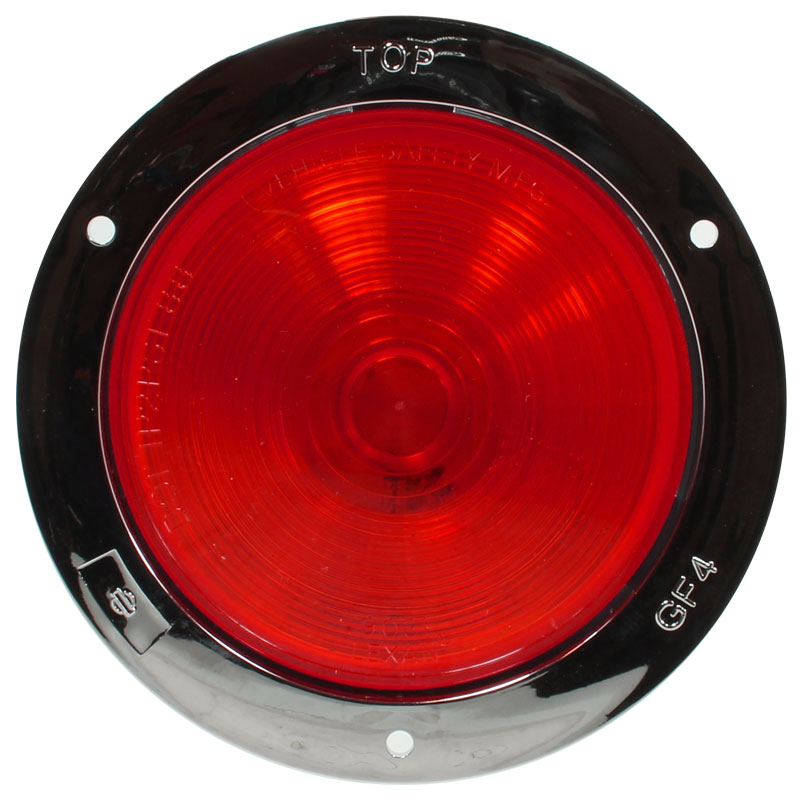

VSM4059 Red 4-inch S/T/T Lamp

VSM4059 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness

Click image to enlarge...

More Images

VSM4059 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness VSM4059 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness VSM4059 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness VSM4059 4-inch stop/tail/turn signal lamp with chrome flange and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 2.17” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4068A Lamp
  • Includes VSM9132C Flange
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Lamp With Snap-In Flange
  • VSM4067A Includes Gray Flange
  • VSM4068A Includes Black Flange
  • VSM4069A Includes Chrome Flange

VSM4554A Amber Rectangular Auxiliary Lamp

VSM4554A rectangular auxiliary amber lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM4554A rectangular auxiliary amber lamp with grommet and pigtail harness VSM4554A rectangular auxiliary amber lamp with grommet and pigtail harness VSM4554A rectangular auxiliary amber lamp with grommet and pigtail harness VSM4554A rectangular auxiliary amber lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 6.34” (W) x 4.43” (H) x 1.69” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4564A Lamp
  • Includes VSM9175 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty

VSM4554 Red Rectangular S/T/T Lamp

VSM4554 rectangular auxiliary red lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM4554 rectangular auxiliary red lamp with grommet and pigtail harness VSM4554 rectangular auxiliary red lamp with grommet and pigtail harness VSM4554A rectangular auxiliary red lamp with grommet and pigtail harness VSM4554A rectangular auxiliary red lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 6.34” (W) x 4.43” (H) x 1.69” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM4564A Lamp
  • Includes VSM9175 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty

VSM6054A Amber 6-inch S/T/T Lamp

VSM6054A 6-inch stop/tail/turn signal lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM6054A 6-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM6054A 6-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM6054A 6-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM6054A 6-inch stop/tail/turn signal lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 6.5” (W) x 2.25” (H) x 2.5” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6064A Lamp
  • Includes VSM9526 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty

VSM6054 Amber 6-inch S/T/T Lamp

VSM6054 6-inch stop/tail/turn signal lamp with grommet and pigtail harness

Click image to enlarge...

More Images

VSM6054 6-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM6054 6-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM6054 6-inch stop/tail/turn signal lamp with grommet and pigtail harness VSM6054 6-inch stop/tail/turn signal lamp with grommet and pigtail harness

Click images to enlarge...

Features

  • Product Dimensions
  • 6.5” (W) x 2.25” (H) x 2.5” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM6064A Lamp
  • Includes VSM9526 Grommet
  • Includes VSM9124 Pigtail
  • Other Product Details
  • Shock-Safe Bulb Mount
  • Current Draw 2.1 A at 12.8V (Stop/Turn)
  • Current Draw .33 A at 14V (Tail)
  • 9V-16V Operating Voltage
  • 3 Year Warranty

Amber and Red LED S/T/T Lamps (Light Only)

VSM522 Round Stop/Tail/Turn Signal Lamp

VSM522 Round 2-Stud Mount Lamp with License Plate Illuminator

Click image to enlarge...

VSM4064A 4" Stop/Tail/Turn Signal Lamp

VSM4064A 4-inch stop/tail/turn signal lamp

Click image to enlarge...

VSM4064 4" Stop/Tail/Turn Signal Lamp

VSM4064A 4-inch stop/tail/turn signal lamp

Click image to enlarge...

VSM4067A 4" Stop/Tail/Turn Signal Lamp, Grey Flange

VSM4067A 4-inch stop/tail/turn signal lamp with grey flange

Click image to enlarge...

VSM4067 4" Stop/Tail/Turn Signal Lamp, Grey Flange

VSM4067 4-inch stop/tail/turn signal lamp with grey flange

Click image to enlarge...

VSM4068A 4" Stop/Tail/Turn Signal Lamp, Black Flange

VSM4068A 4-inch stop/tail/turn signal lamp with black flange

Click image to enlarge...

VSM4068 4" Stop/Tail/Turn Signal Lamp, Black Flange

VSM4068 4-inch stop/tail/turn signal lamp with black flange

Click image to enlarge...

VSM4069A 4" Stop/Tail/Turn Signal Lamp, Chrome Flange

VSM4069A 4-inch stop/tail/turn signal lamp with chrome flange

Click image to enlarge...

VSM4069 4" Stop/Tail/Turn Signal Lamp, Chrome Flange

VSM4069 4-inch stop/tail/turn signal lamp with chrome flange

Click image to enlarge...

VSM4212 Double Contact Stop/Tail/Turn Signal Lamp

VSM4212 Universal Round Double-Contact Stop/Tail/Turn Lamp

Click image to enlarge...

VSM4564A Rectangular Stop/Tail/Turn Signal Lamp

VSM4564A Amber Rectangular Stop/Tail/Turn Signal Lamp

Click image to enlarge...

VSM4564 Rectangular Stop/Tail/Turn Signal Lamp

VSM4564 Red Rectangular Stop/Tail/Turn Signal Lamp

Click image to enlarge...

VSM6064A 6" Amber Stop/Tail/Turn Signal Lamp

VSM6064A 6-inch incandescent Amber stop/tail/turn signal lamp

Click image to enlarge...

VSM6064 6" Red Stop/Tail/Turn Signal Lamp

VSM6064 6-inch incandescent Red stop/tail/turn signal lamp

Click image to enlarge...
